| Technical Data | ||
|---|---|---|
| Brand | Leuze | |

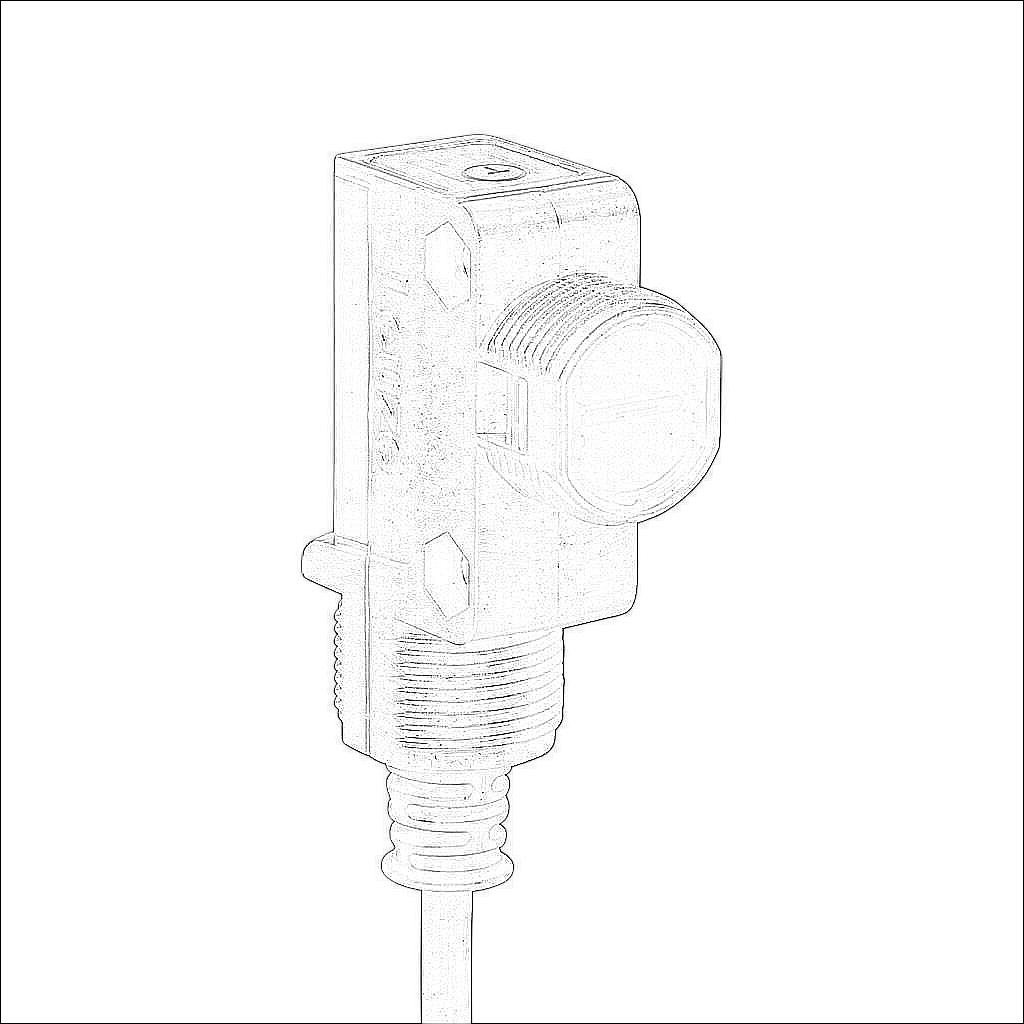

| Item | Photoelectric sensor | |
| Shape | Rectangular | |
| Housing Size | 57.7 x 15 x 37.3mm | |
| Thread lens size | 18mm | |
| IP Rating | IP67 | |
| Application | Standard duty | |
| Housing Material | ABS plastic | |
| Sensing Method | Diffuse | |
| Operating Voltage | 10-30 VDC | |
| Number of Wires | 4 | |
| Switching Output | NPN | |
| Sensing Distance | 1-650mm | |
| Sensitivity | Teach-in button | |
| Operation Mode | Complementary light-on/dark-on | |
| Switching Frequency | 500 Hz | |
| Light Emission | Visible red | |
| IO-Link Compatible | No | |
| Cable Length | 6.5ft/2m | |
| Jacket Material | PUR | |
| Connection | Pigtail | |
| Conductor Size | 24 AWG | |
| Includes | Mounting hardware | |
