| Technical Data | ||
|---|---|---|
| Brand | ProSense | |

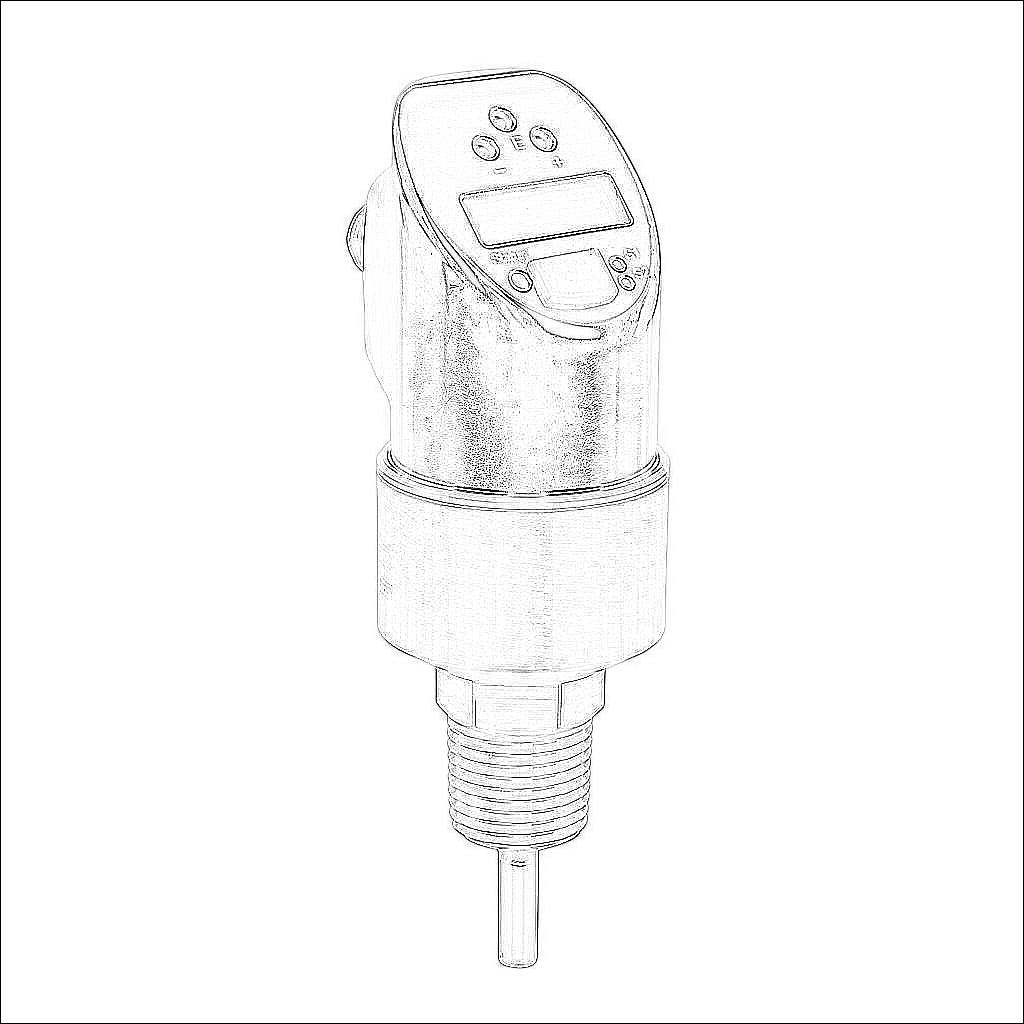

| Item | Digital temperature sensor/switch | |
| Sensor Element | Pt100 RTD | |
| Sensor Type | M12 probe | |
| Media Type | Liquid, water, oil, chemicals, gases and air | |
| Accuracy | Class A accuracy | |
| Insertion Length | 30mm | |
| Probe Diameter | 6mm | |
| Sheath Material | 316L stainless steel | |
| Process Connection | 1/2in male NPT | |
| Temperature Sensing Range | -58 to 302 deg F | |
| Number Of Output Channels | 2 | |
| Output | Switch PNP, N.O./N.C. selectable | |
| Output 2 | Switch PNP, N.O./N.C. selectable | |
| Display Type | 4-digit | |
| Operating Voltage | 12-30 VDC | |
| Electrical Connection | 4-pin M12 quick-disconnect | |
| IP Rating | IP65 and IP66 | |
| Additional Information | Purchase cable separately | |
