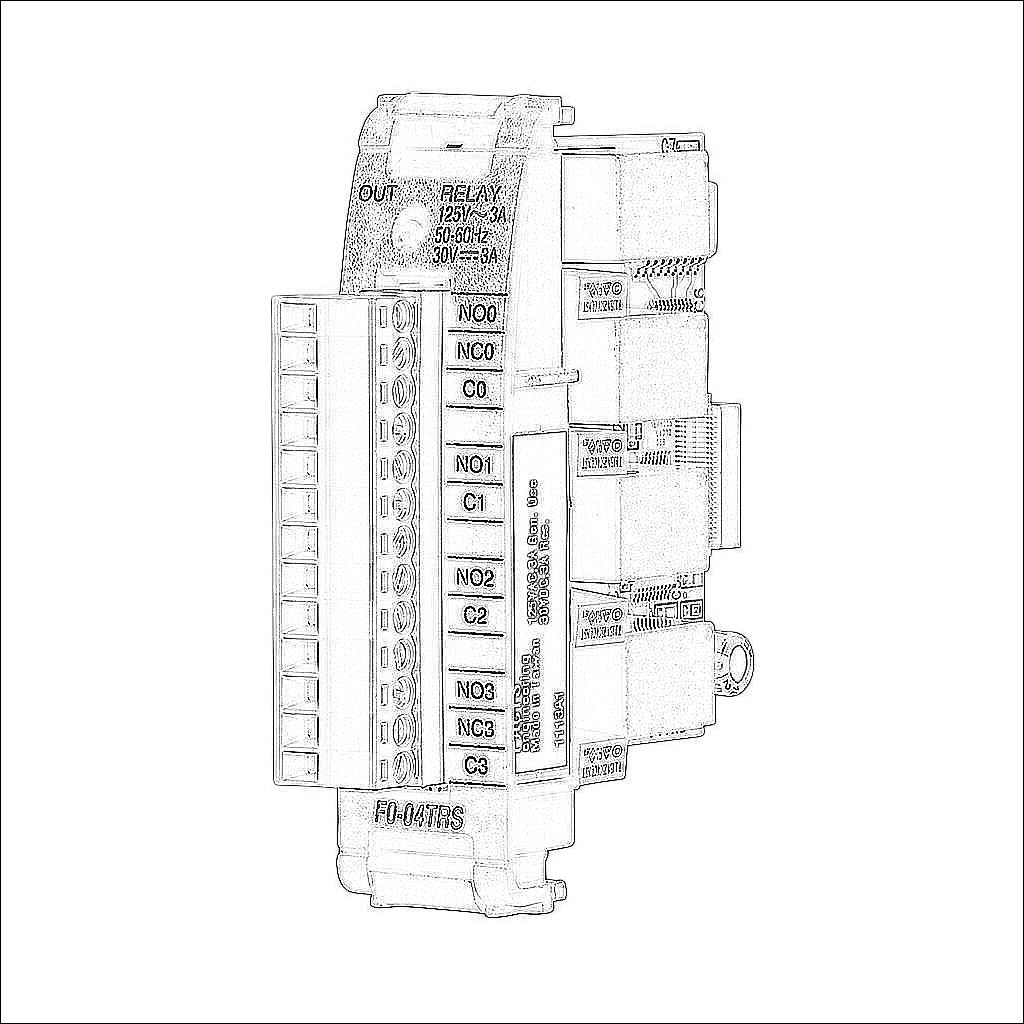

| Technical Data | ||
|---|---|---|
| Brand | DirectLOGIC | |
| Item | Output module | |
| I/O Module Type | Relay | |
| Series | DL05/06 | |
| Number of Output Points | 4 | |
| Nominal Output Voltage | 6-48 VDC/6-208 VAC | |
| Relay Configuration | (2) Form A (SPST) relays, (2) Form C (SPDT) relays | |
| Number of Isolated Commons | 4 | |
| Jumper Selectable Isolation | No | |
| Number of Points per Common | 1 | |
| Load Current | 3A/point | |
| Fuse Type | Replaceable fuse | |
| Includes | Removable terminal block | |
| Programming Software | DirectSOFT programming software v4.0 or later | |
