| Technical Data | ||
|---|---|---|
| Brand | ProSense | |

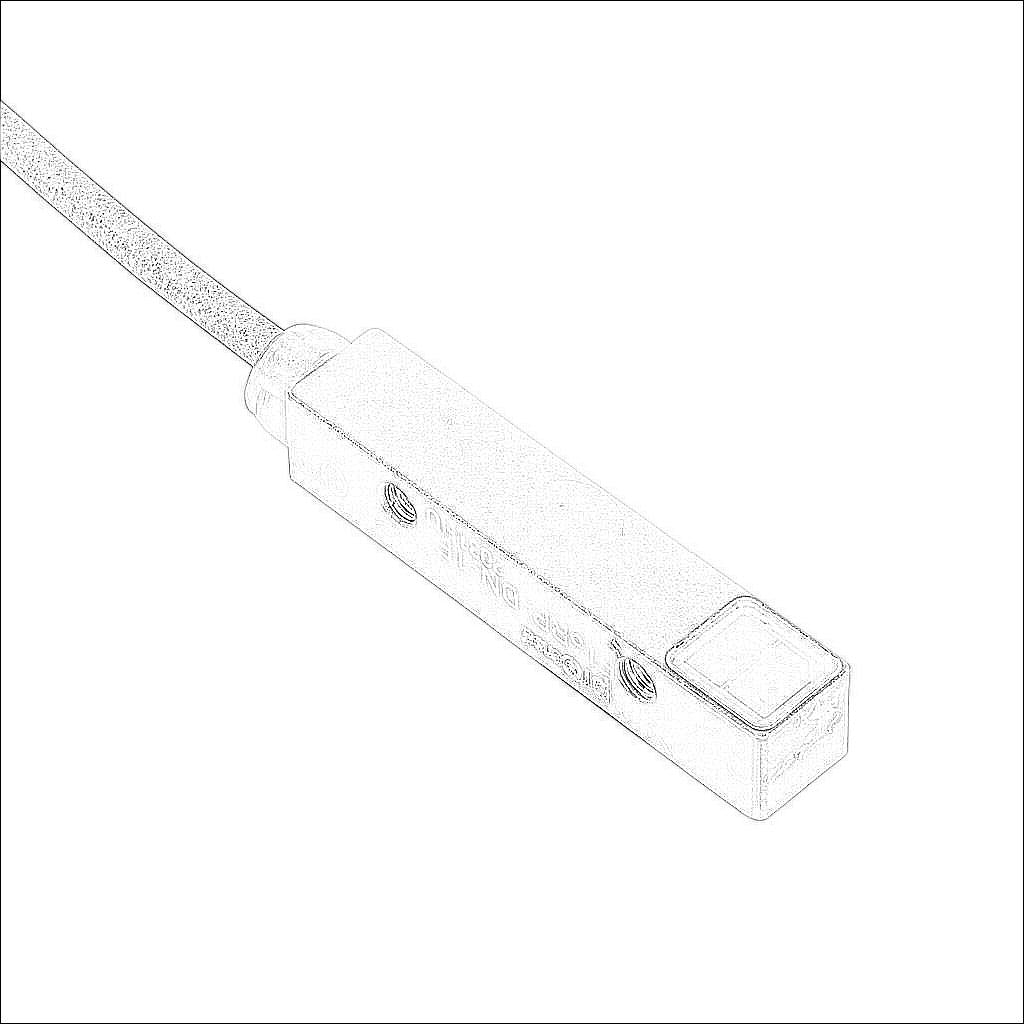

| Item | Photoelectric sensor | |
| Shape | Rectangular | |
| Housing Size | 8 x 8 x 44mm body | |
| IP Rating | IP67 | |
| Application | Small space and standard duty | |
| Housing Material | Die-cast zinc | |
| Sensing Method | Polarized retroreflective | |
| Operating Voltage | 10-30 VDC | |
| Number of Wires | 3 | |
| Switching Output | NPN | |
| Sensing Distance | 0-1m | |
| Operation Mode | Dark-on | |
| Switching Frequency | 500 Hz | |
| Light Emission | Visible red | |
| IO-Link Compatible | No | |
| Cable Length | 0.6ft/0.2m | |
| Jacket Material | 316L stainless steel | |
| Connection | 3-pin M8 quick-disconnect | |
| Additional Information | Purchase cable separately | |
