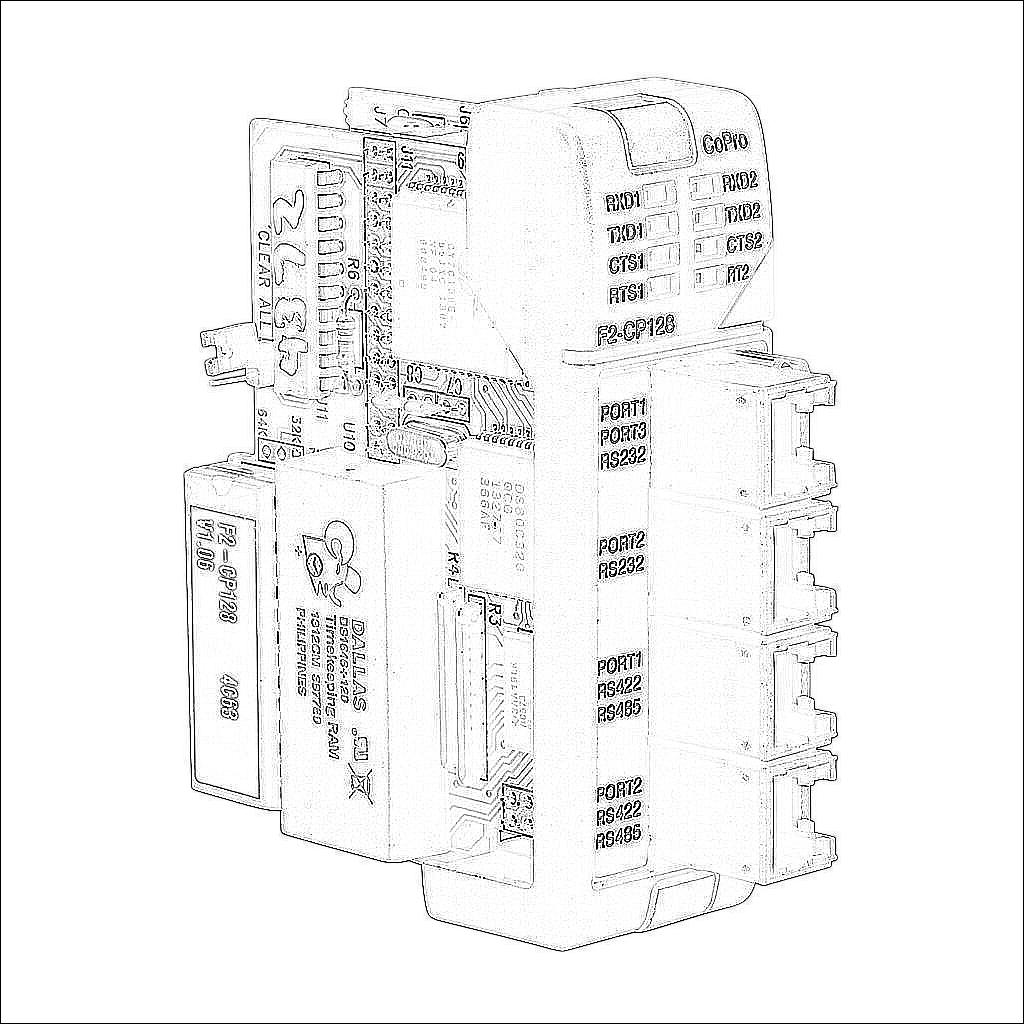

F2-CP128

F2-CP128

DirectLOGIC DL205 communication module, ASCII, 3 ports, buffered, 128k program memory, 26 MHz maximum switching frequency, (1) RS-232 and (2) RS-232/RS-422/RS-485 port(s). For use with D2-240, D2-250(-1), D2-260 and D2-262 CPU-based PLCs.

$755
/
Technical Data
BrandDirectLOGIC
ItemCommunication module
SeriesDL205
Number of Ports3
Buffered PortsYes
Program Memory128k
Maximum Switching Frequency26 MHz
Communication Port and Connection Type(s)
  • (1) RS-232
  • (2) RS-232/RS-422/RS-485
Port Protocol(s)
  • ASCII BASIC
Port Speed(s)
  • up to 115.2k baud
For Use WithD2-240, D2-250(-1), D2-260 and D2-262 CPU-based PLCs
Programming SoftwareDirectSOFT programming software v4.0 or later
Additional InformationNot compatible with D2-230 or Do-more H2 series CPUs.
Dangerous Goods
  • Battery Installed: Yes
  • Packaging Instructions: 970
  • UN Number: UN3091
  • Hazard Type: Lithium Batteries
  • Battery Type: Button
  • Lithium Content: 0.04
  • Replacement Battery: BR1632
  • Generic Battery: BR1632
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
