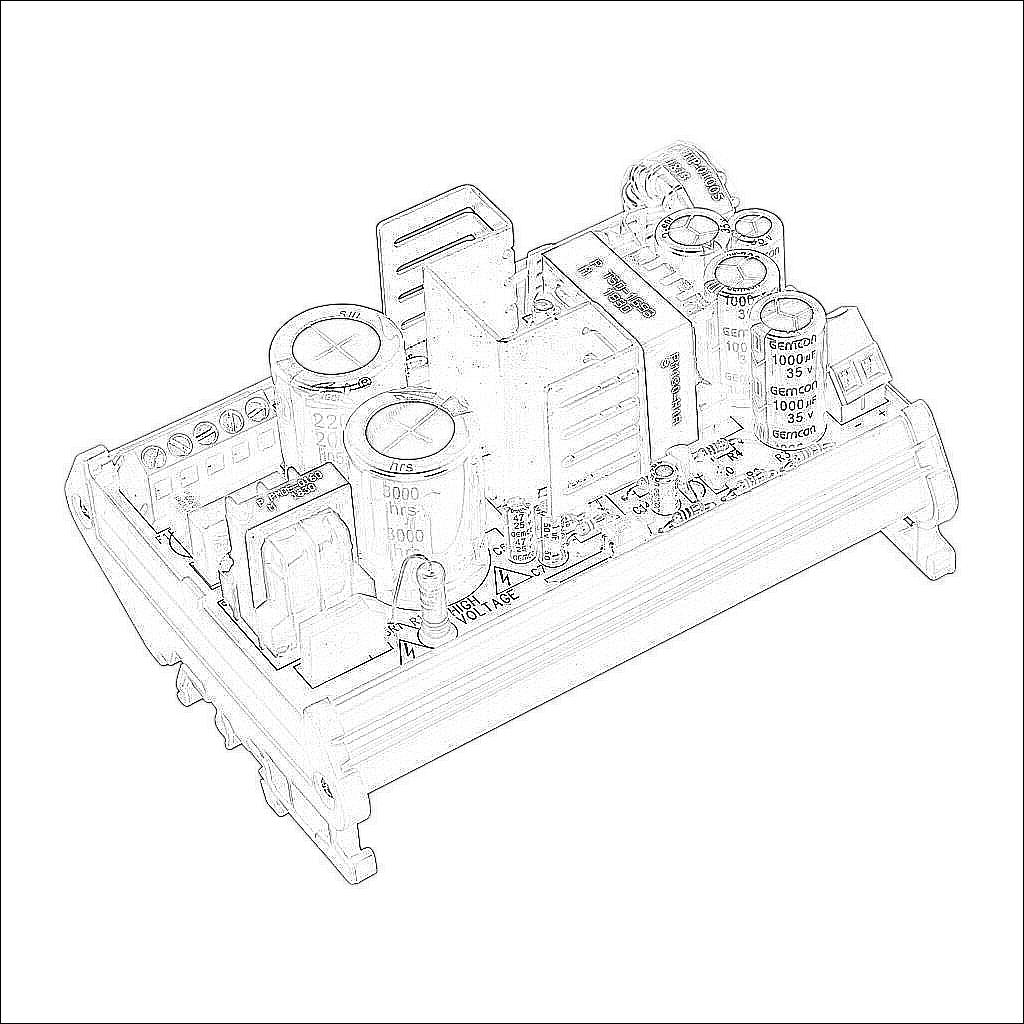

FA-24PS-90

FA-24PS-90

AutomationDirect switching power supply, 24 VDC @ 3.7A/90W, 120/240 VAC nominal input, 1-phase, open frame, plastic housing, 35mm DIN rail mount, screw terminals, hazardous location rated.

$126.25
/
Technical Data
BrandAutomationDirect
ItemPower supply
Power Supply TypeSwitching
Efficiency84% @ 115 VAC, 85% @ 230 VAC
Output ConfigurationSingle output
Output24 VDC @ 3.7A/90W
Output Voltage Range24 VDC
Input voltage range95-130 VAC/190-264 VAC
Input Voltage Selection TypeJumper
Number of Input Phases1
Protection Type(s)
  • overvoltage
  • short circuit
  • overload
Remote On/OffNo
Voltage MonitoringNo
Enclosure TypeOpen frame
Housing MaterialPlastic
Mounting35mm DIN rail
Connector TypeScrew terminals
NEC Class 2No
Integrated UPS Battery ControlNo
Operating Temperature0 to 30 deg C
ApplicationHazardous location rated
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
