| Technical Data | ||
|---|---|---|
| Brand | AchieVe | |

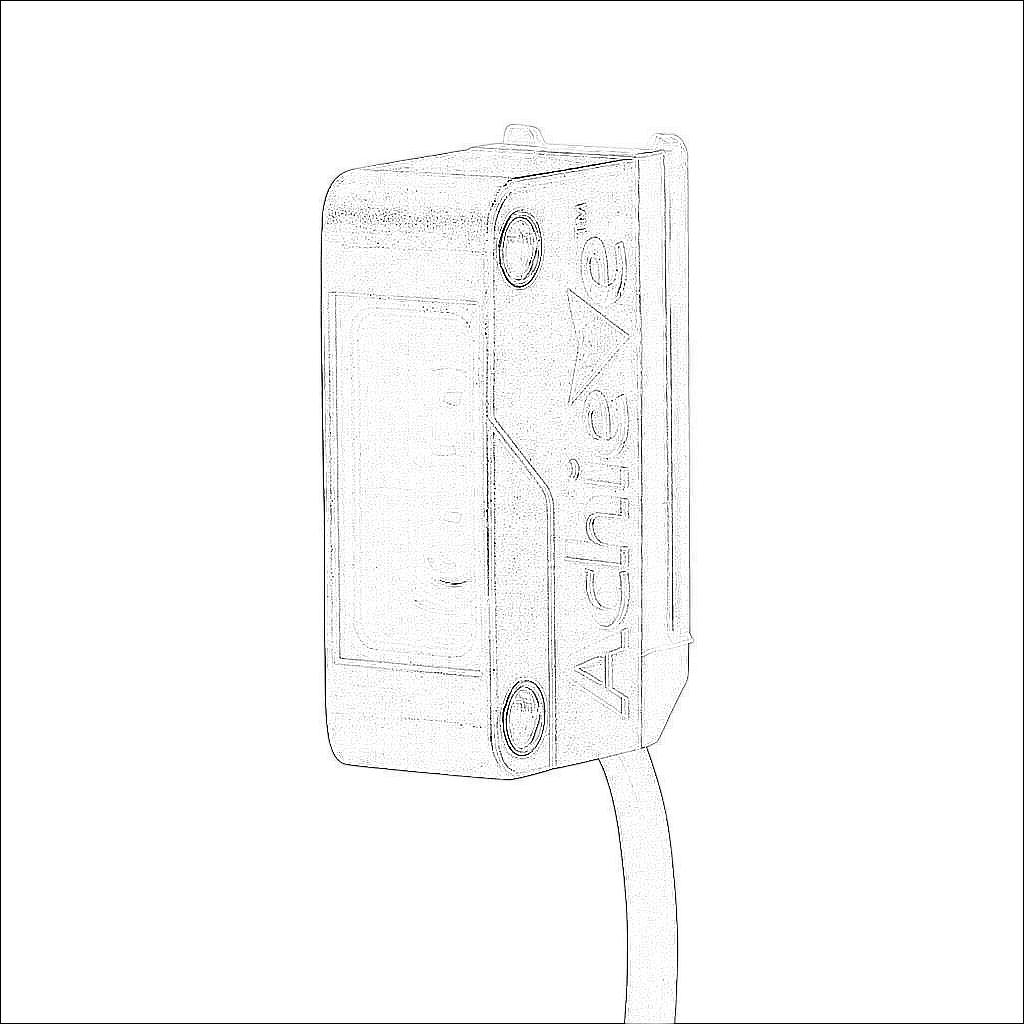

| Item | Photoelectric sensor | |
| Shape | Rectangular | |
| Housing Size | 20 x 11 x 32.4mm | |
| IP Rating | IP67 | |
| Application | Standard duty and dark and shiny | |
| Housing Material | ABS/polycarbonate | |
| Sensing Method | Polarized retroreflective | |
| Operating Voltage | 10-30 VDC | |
| Number of Wires | 3 | |
| Switching Output | PNP | |
| Sensing Distance | 0.04-4m | |
| Operation Mode | Selectable light-on/dark-on | |
| Switching Frequency | 500 Hz | |
| Light Emission | Visible red | |
| IO-Link Compatible | No | |
| Cable Length | 6.5ft/2m | |
| Jacket Material | PVC | |
| Connection | Pigtail | |
| Conductor Size | 26 AWG | |
| Additional Information | Purchase reflector separately | |
