| Technical Data | ||
|---|---|---|
| Brand | Fandis | |
| Series | Virdis series | |
| Airflow Direction | Intake | |

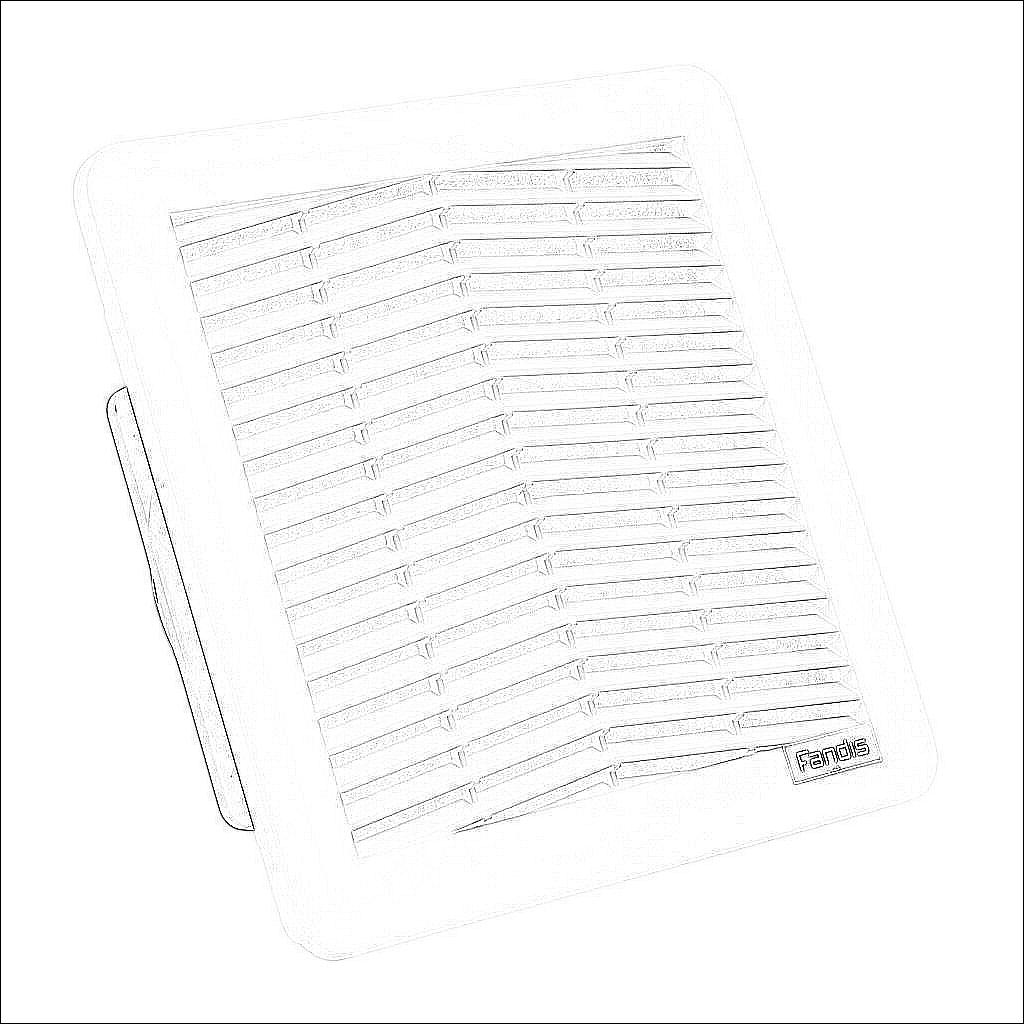

| Item | Fan | |
| Mounting | Side | |
| With Air Flaps | No | |
| Filter Media | G3 (coarse) filter mat | |
| Free Airflow | 59 CFM | |
| Airflow with Grill and Filter(s) | 45 CFM | |
| Operating Voltage | 24 VDC | |
| Power Consumption | 8W | |
| Current Draw | 342 mA | |
| Electrical Connection | Screwless terminal block | |
| Maximum Static Pressure | 62Pa | |
| Operating Temperature | 14 to 131 deg F | |
| Average Noise Level | 42 dBA | |
| NEMA Rating | 12 | |
| Application | Indoor use only | |
| IP Rating | IP54 | |
| Enclosure Cutout | 6.97 x 6.97in | |
| Color | RAL 7035 light gray | |
| Additional Information | Purchase exhaust grille separately | |
