| Technical Data | ||
|---|---|---|
| Brand | AutomationDirect | |

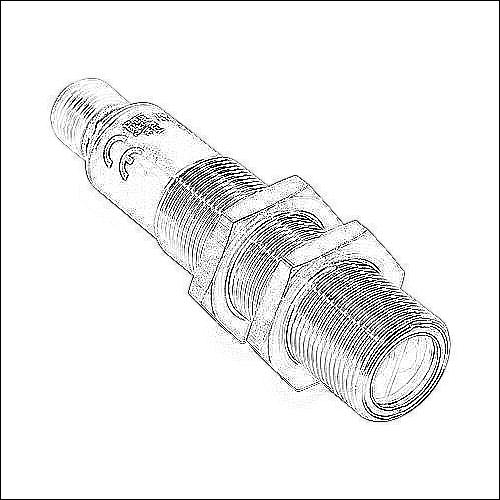

| Item | Photoelectric sensor | |
| Shape | Tubular | |
| Barrel Type | Threaded | |
| Housing Size | 18mm diameter x 82.5mm body | |
| IP Rating | IP69K | |
| Application | Harsh duty, food and beverage and dark and shiny | |
| Housing Material | 316L stainless steel | |
| Sensing Method | Diffuse with background suppression | |
| Operating Voltage | 10-30 VDC | |
| Number of Wires | 4 | |
| Switching Output | PNP | |
| Sensing Distance | 60-100mm | |
| Sensitivity | Teach-in button | |
| Operation Mode | Complementary light-on/dark-on | |
| Switching Frequency | 400 Hz | |
| Light Emission | Visible red | |
| IO-Link Compatible | No | |
| Connection | 4-pin M12 quick-disconnect | |
| Standard I/O Mode Supported | No | |
| Includes | Mounting hardware | |
| Additional Information | Purchase cable separately | |
