| Technical Data | ||
|---|---|---|
| Brand | AchieVe | |

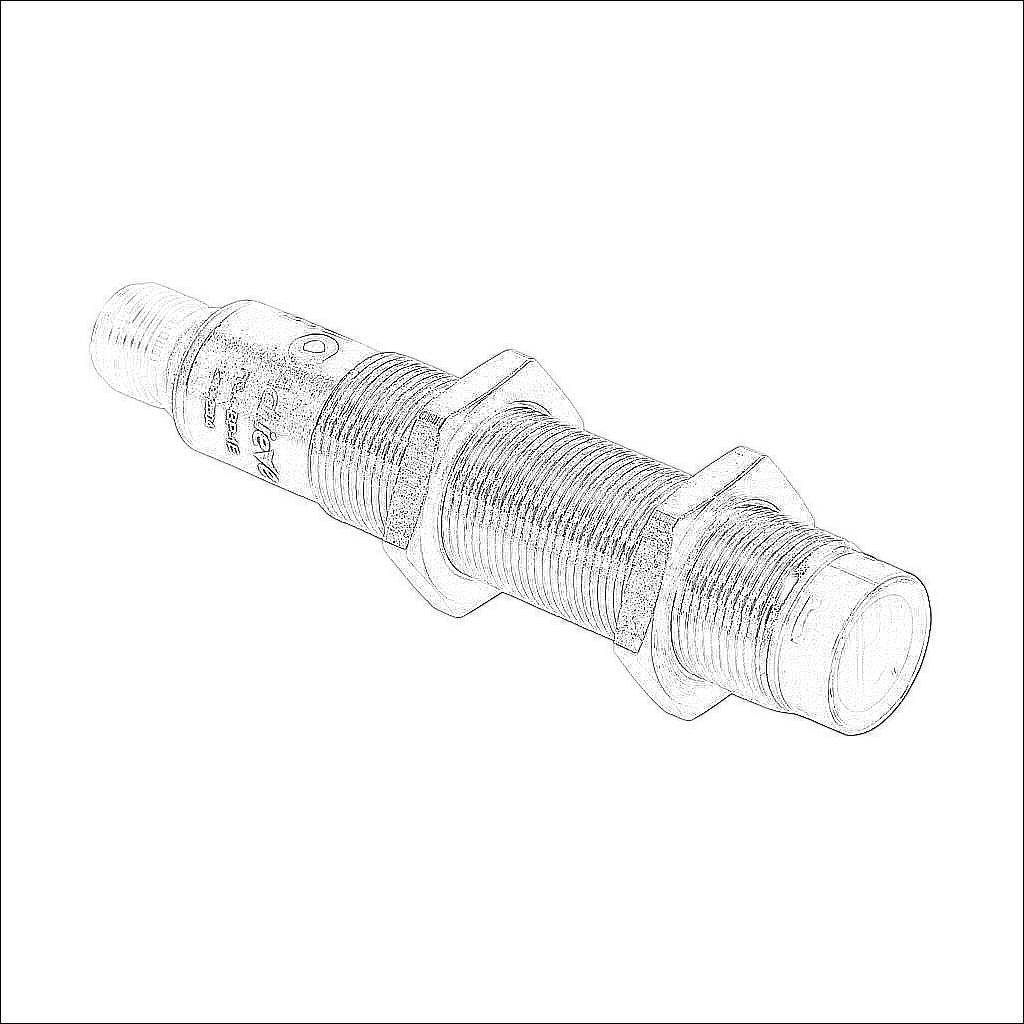

| Item | Photoelectric sensor | |
| Shape | Tubular | |
| Barrel Type | Threaded | |
| Housing Size | 18mm diameter x 60mm body | |
| IP Rating | IP67 | |
| Application | Laser and standard duty | |
| Housing Material | Nickel-plated brass | |
| Sensing Method | Diffuse | |
| Operating Voltage | 10-30 VDC | |
| Number of Wires | 4 | |
| Switching Output | PNP | |
| Sensing Distance | 0-300mm | |
| Sensitivity | Teach-in button | |
| Operation Mode | Complementary light-on/dark-on | |
| Switching Frequency | 1 kHz | |
| Light Emission | Class 1 red laser | |
| IO-Link Compatible | No | |
| User Interface | Pushbutton user interface | |
| Connection | 4-pin M12 quick-disconnect | |
| Includes | Mounting hardware | |
| Additional Information | Purchase cable separately | |
