| Technical Data | ||
|---|---|---|
| Brand | Gladiator | |

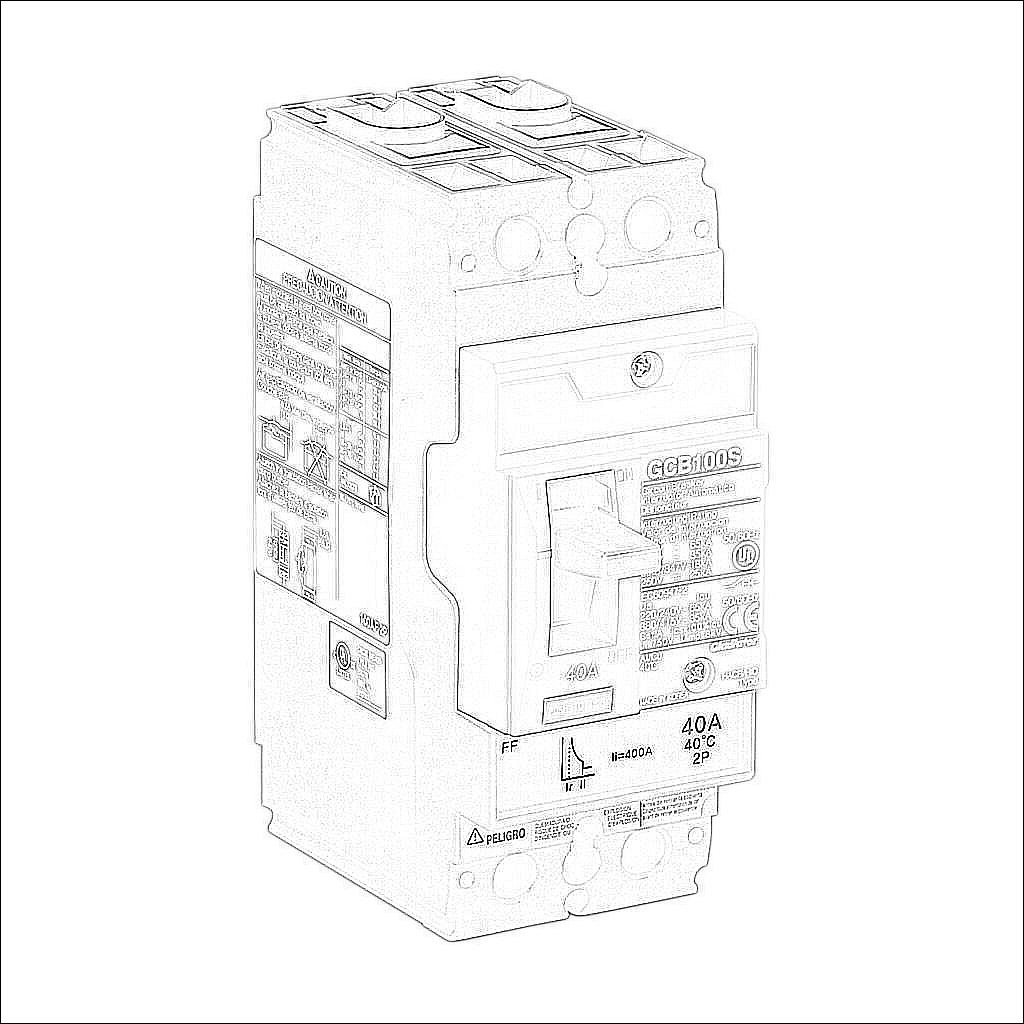

| Item | Circuit breaker | |
| Circuit Breaker Type | Molded case | |
| Circuit Type | Feeder and branch | |
| Current-Limiting | No | |
| Frame Size | 100A | |
| Amperage Rating | 40A | |
| Voltage Rating | 600Y/480 VAC/250 VDC | |
| Number of Poles | 2 | |
| Trip Curve | Characteristics | |
| Trip Type | Fixed thermal/fixed magnetic | |
| Interrupting Rating | 35kA @ 480 VAC | |
| UL Rating | UL 489 listed | |
| Mounting | Panel | |
| HACR Rated | Yes | |
| Reverse Feed Capable | Yes | |
| Includes | Line and load lug terminals | |
