| Technical Data | ||
|---|---|---|
| Brand | AcuAMP | |

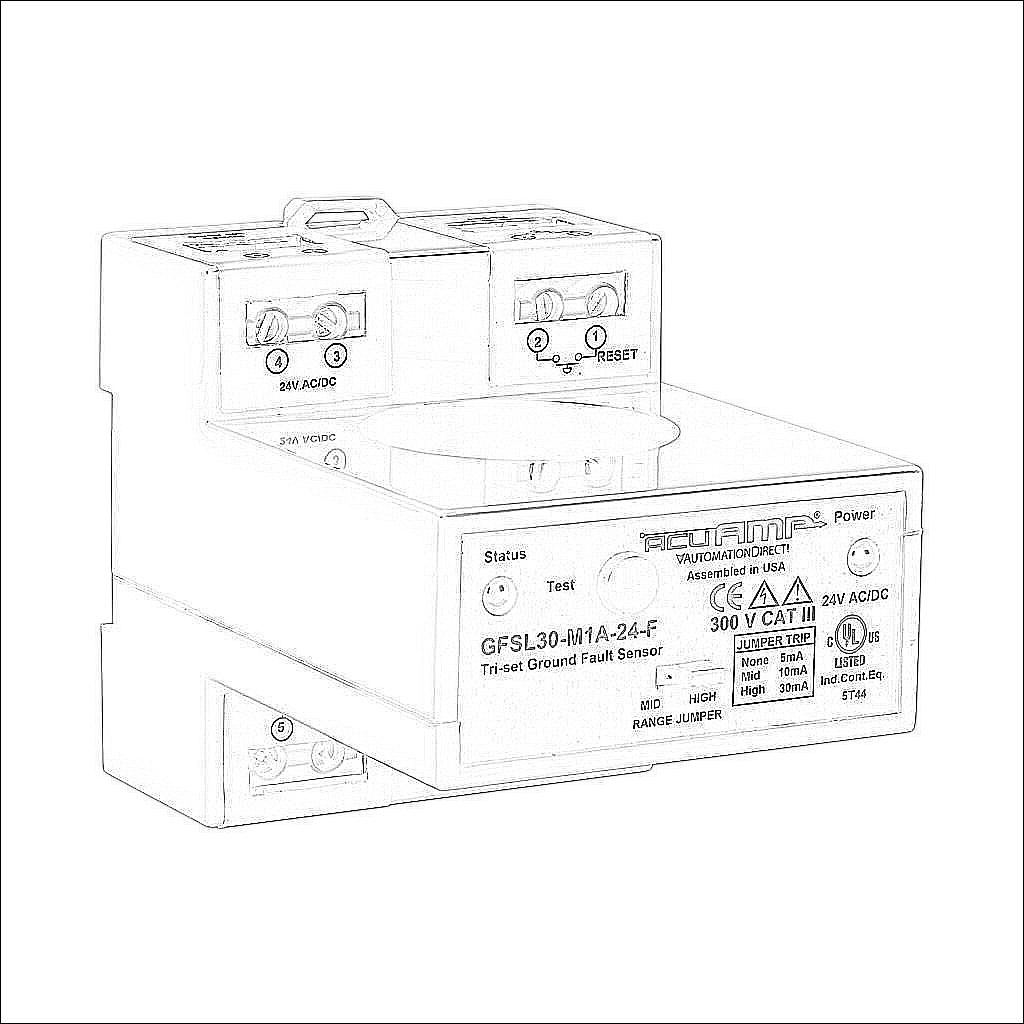

| Item | Ground fault sensor | |
| Body Type | Large aperture fixed core | |
| Trip Point | 5, 10, or 30 mA selectable | |
| Output | Relay, SPST-N.O., manual reset | |
| Output Rating | 1A @ 120 VAC, 2A @ 30 VDC | |
| Operating Voltage | 24 VAC/VDC | |
| Mounting | Panel or optional 35mm DIN rail | |
| Electrical Connection | Screw terminals | |
| UL Rating | UL 508 listed | |
