GIB-XY-085-V-2A

GIB-XY-085-V-2A

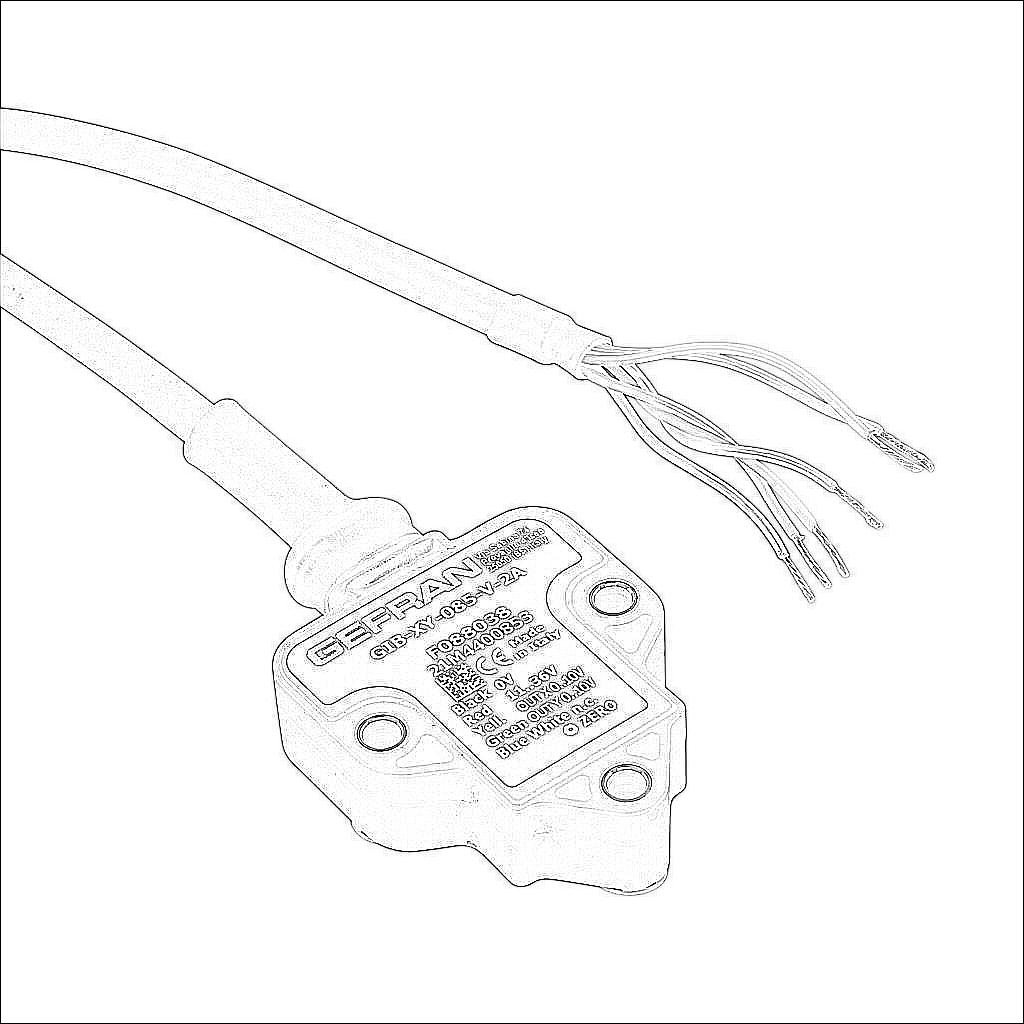

Gefran inclination sensor, 2 axes, +/- 85 degrees, +/-0.5 degrees accuracy, 0-10 VDC output, IP67 IP69K, thermoplastic (PBT) housing, pigtail, 6.5ft/2m cable length.

$291.25
/
Technical Data
BrandGefran
ItemInclination sensor
Number of Axes2
Measuring Range+/- 85 degrees
Accuracy+/-0.5 degrees
Output0-10 VDC
Operating Voltage10-36 VDC
IP RatingIP67 IP69K
Housing MaterialThermoplastic (PBT)
ConnectionPigtail
Cable Length6.5ft/2m
Number of Wires4
Conductor Size22 AWG
Jacket MaterialPUR
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
