| Technical Data | ||
|---|---|---|
| Brand | IDEM | |

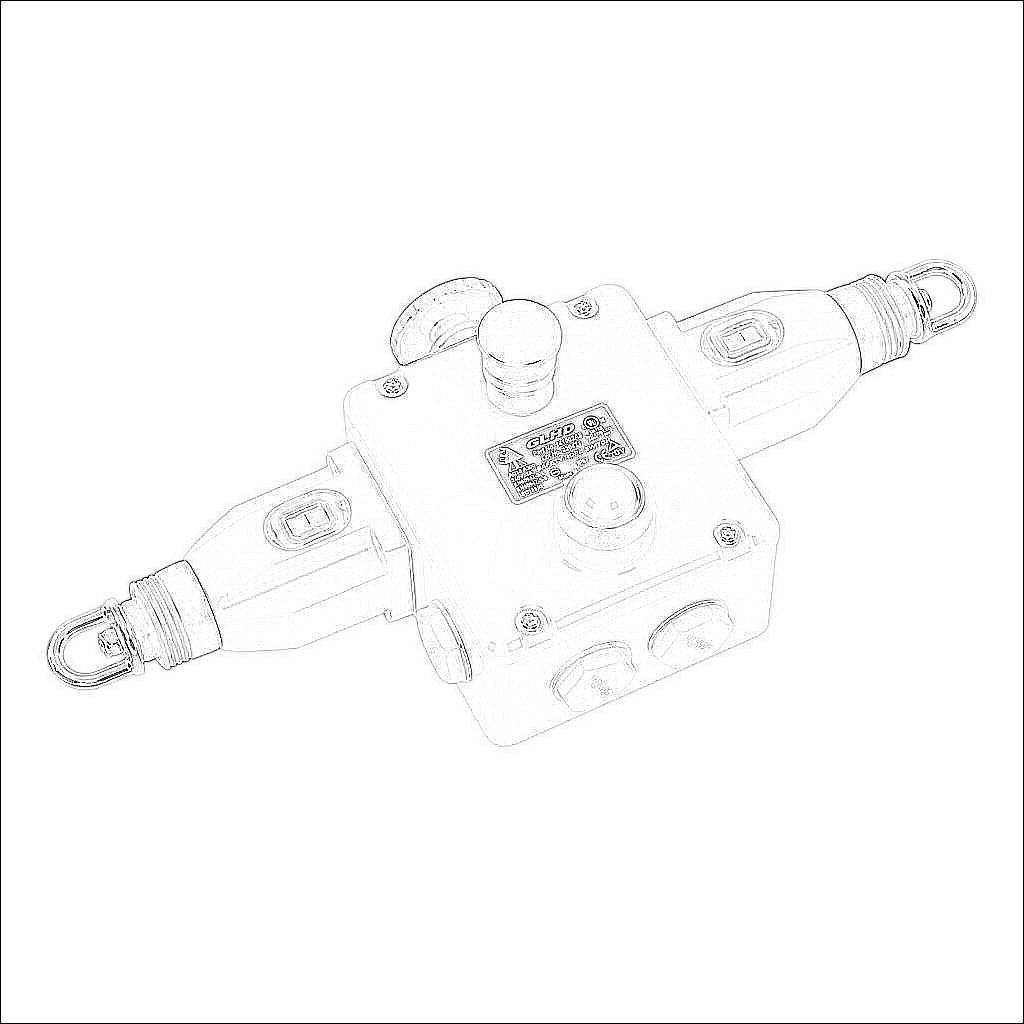

| Item | Safety switch | |
| Actuator Type | Cable-pull interlock | |
| Reset | Yes | |
| Head Type | Dual | |
| Action | Snap acting switch mechanism | |
| Maximum Pull Cable Length | 250m | |
| Emergency Stop | Yes | |
| Safety Output Type | (4) N.C. | |
| Monitoring Output Type | (2) N.O. | |
| Indicating Type | 24 VDC LED | |
| Housing Size | 327 x 110 x 60mm | |
| Body Material | Die-cast aluminum | |
| IP Rating | IP67 | |
| Connection | (4) 1/2in NPT cable entries | |
| Includes | (1) tamper-proof T20 Torx bit | |
