| Technical Data | ||
|---|---|---|
| Brand | IDEM | |
| Series | Z-Range | |

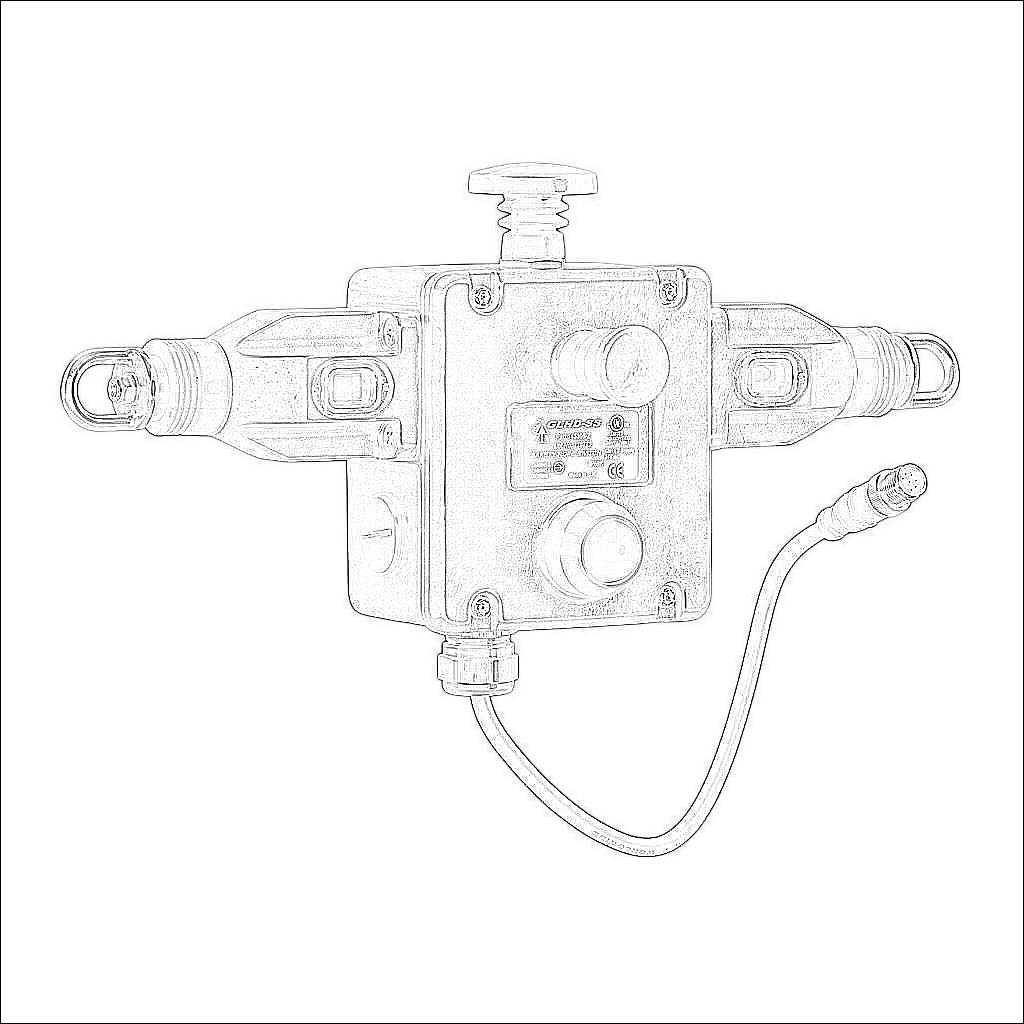

| Item | Safety switch | |
| Actuator Type | Cable-pull interlock | |
| Reset | Yes | |
| Head Type | Dual | |
| Maximum Pull Cable Length | 250m | |
| Emergency Stop | Yes | |
| Safety Output Type | (2) OSSD | |
| Monitoring Output Type | (1) status | |
| Indicating Type | Dual color LED | |
| Housing Size | 327 x 110 x 60mm | |
| Body Material | 316 stainless steel | |
| IP Rating | IP67 IP69K | |
| Connection | 8-pin M12 quick-disconnect | |
| Cable Length | 9.8in/250mm | |
| Includes | (1) tamper-proof T20 Torx bit | |
