| Technical Data | ||
|---|---|---|
| Brand | IDEM | |

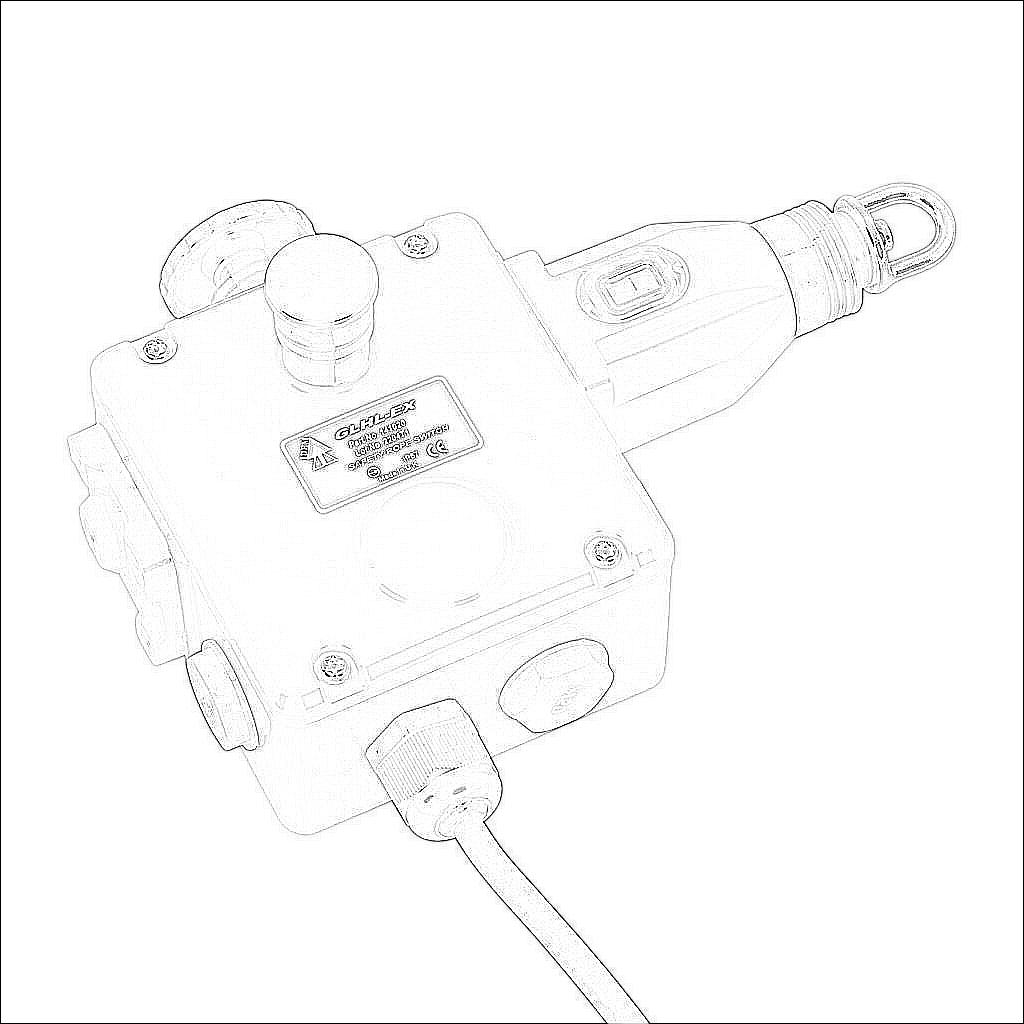

| Item | Safety switch | |
| Actuator Type | Cable-pull interlock | |
| Reset | Yes | |
| Head Type | Left hand | |
| Action | Snap acting switch mechanism | |
| Maximum Pull Cable Length | 125m | |
| Emergency Stop | Yes | |
| Safety Output Type | (2) N.C. | |
| Monitoring Output Type | (2) N.O. | |
| Housing Size | 223 x 110 x 60mm | |
| Body Material | Die-cast aluminum | |
| IP Rating | IP67 | |
| Connection | Pigtail | |
| Conductor Size | 24 AWG | |
| Cable Length | 9.8ft/3m | |
| Includes | (1) tamper-proof T20 Torx bit | |
| Application | Hazardous location rated | |
