| Technical Data | ||
|---|---|---|
| Brand | ifm efector | |

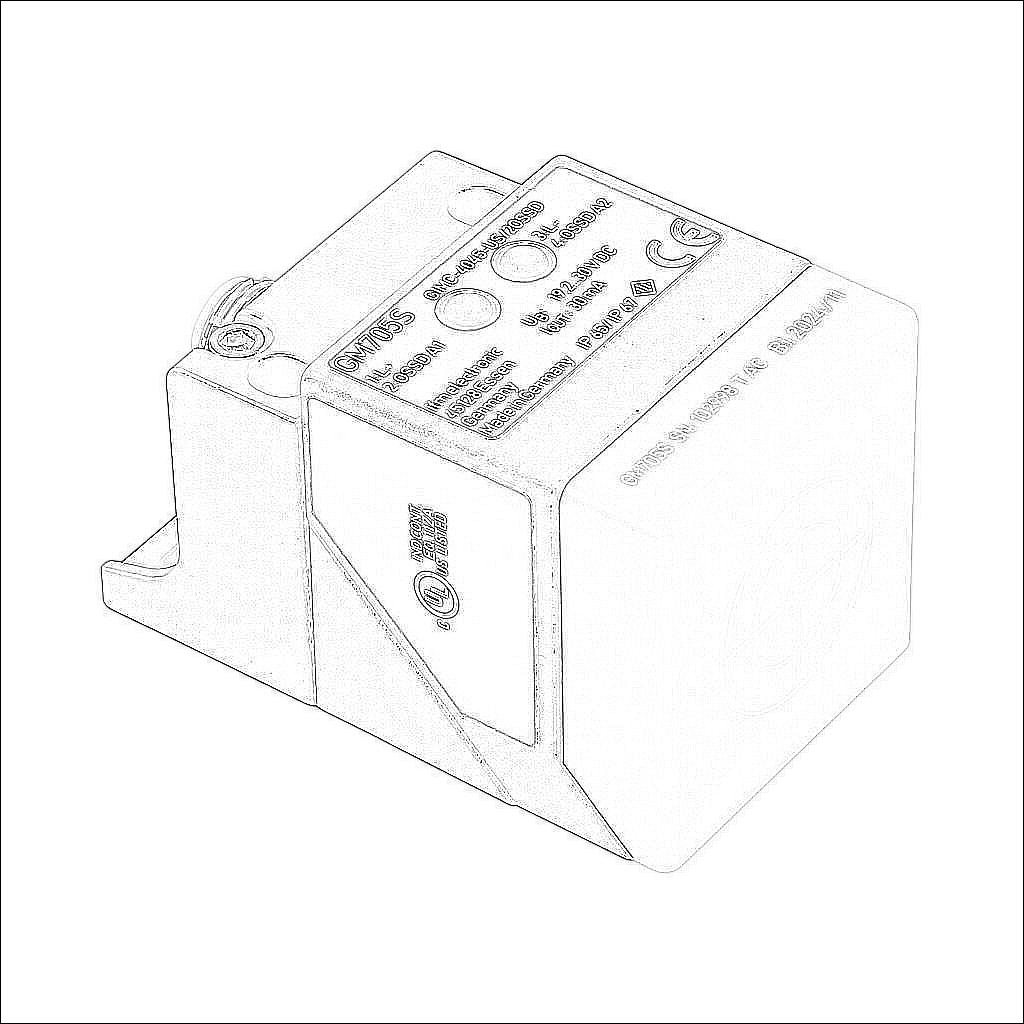

| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | Safety | |
| Shape | Rectangular | |
| Housing Size | 40 x 40 x 66mm body | |
| Housing Material | Die-cast zinc | |
| Adjustable | No | |
| Number of Wires | 4 | |
| Switching Output | PNP | |
| Operation Mode | (2) OSSD | |
| Enable Zone | 4-20mm | |
| Safe Switch-Off Distance | 45mm | |
| Mounting Type | Non-flush | |
| IO-Link Compatible | No | |
| Operating Voltage | 19.2-30 VDC | |
| Operating Temperature | -25 to 60 deg C | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP65 IP67 | |
| Connection | 4-pin M12 quick-disconnect | |
| Additional Information | Fail-Safe SIL 3 PLe, safe state when undamped (target not present) | |
