| Technical Data | ||
|---|---|---|
| Brand | Gladiator | |

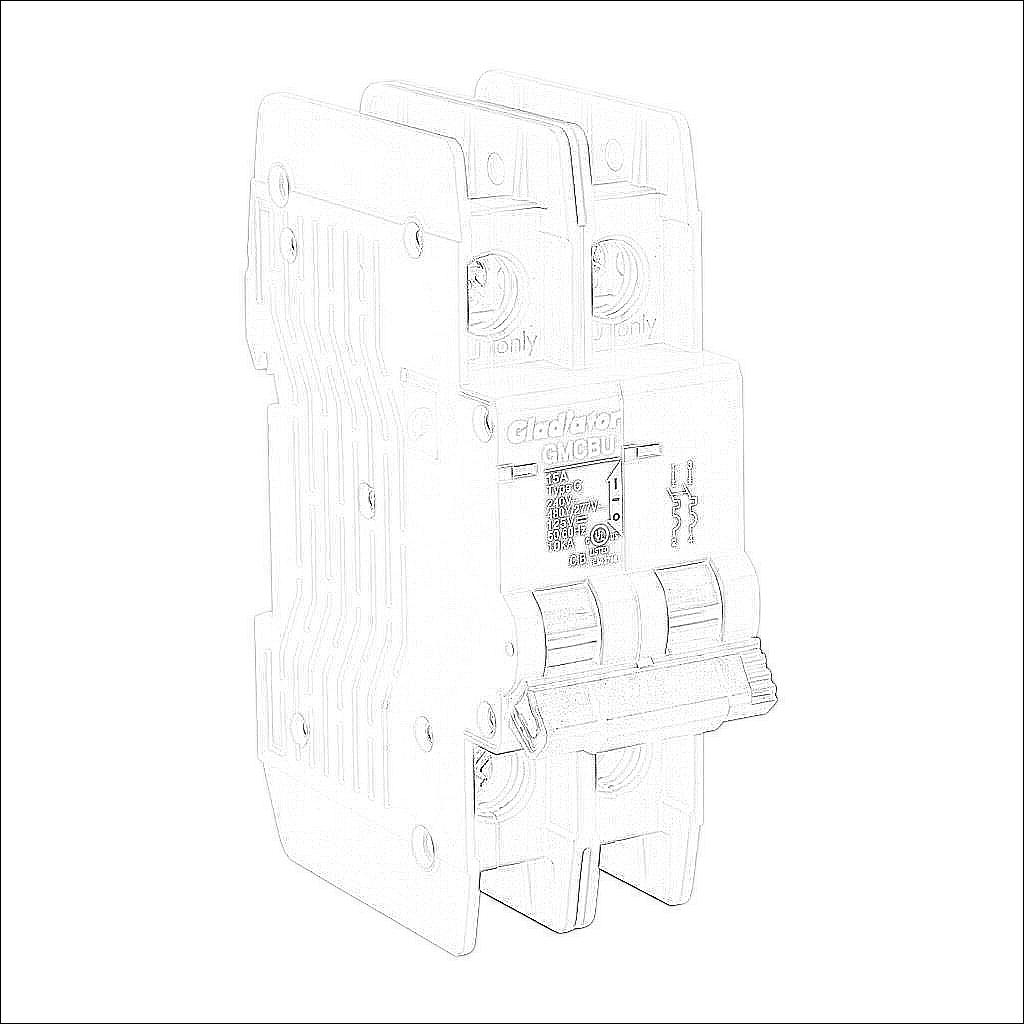

| Item | Circuit breaker | |
| Circuit Breaker Type | Miniature | |
| Circuit Type | Feeder and branch | |
| Current-Limiting | No | |
| Amperage Rating | 15A | |
| Voltage Rating | 480Y/277 VAC/125 VDC | |
| Number of Poles | 2 | |
| Trip Curve | C curve | |
| Trip Type | Thermal magnetic | |
| Interrupting Rating | 10kA @ 480Y/277 VAC | |
| UL Rating | UL 489 listed | |
| Mounting | 35mm DIN rail | |
| HACR Rated | Yes | |
| Reverse Feed Capable | Yes | |
