| Technical Data | ||
|---|---|---|
| Brand | Metrol | |

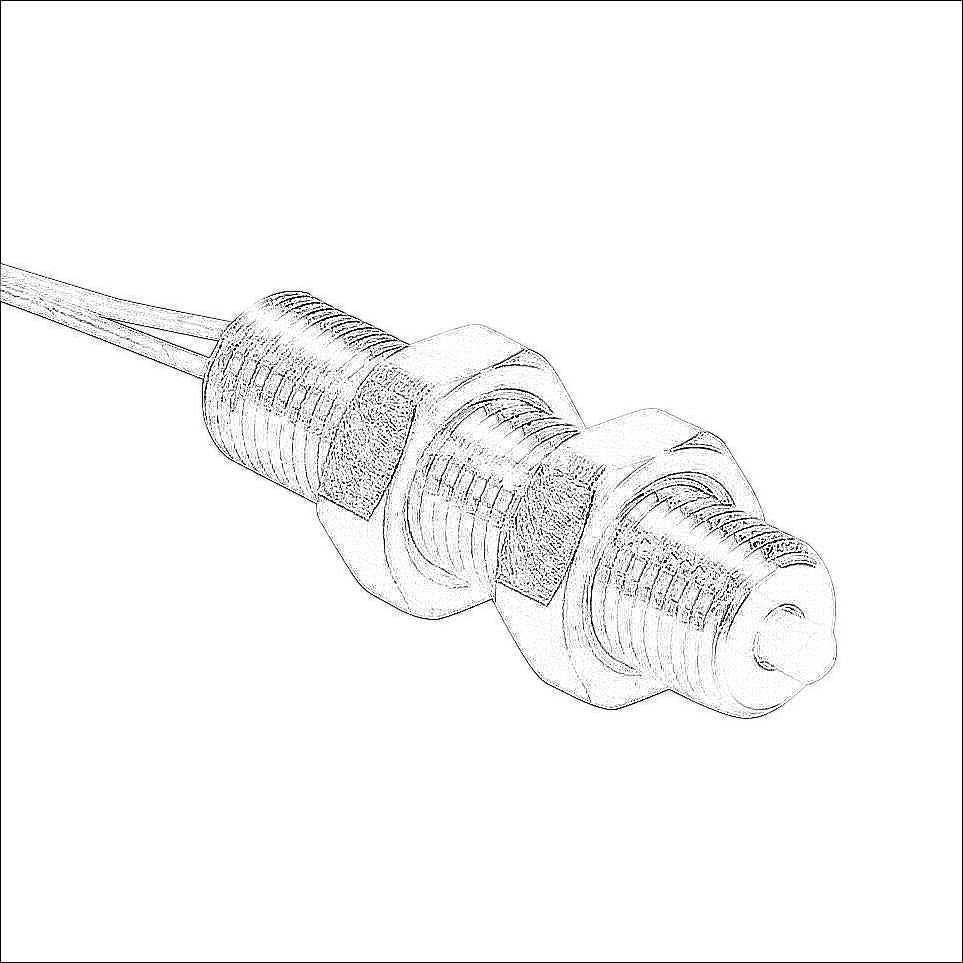

| Item | Limit switch | |
| Application | Vacuum | |
| Switch Type | Precision touch | |
| Diameter | 5mm | |
| Barrel Type | Threaded | |
| Length | 21.5mm | |
| Head Type | 2mm radius | |
| Actuator Type | 1.5mm plunger | |
| Contact Force | 0.5N | |
| Contact Type | (1) N.O. | |
| Cable Length | 1.6ft/0.5m | |
| Connection | Core wire | |
| Conductor Size | 27 AWG | |
| Stroke | 1.5mm | |
| Repeatability | 0.003mm | |
| Thread Pitch | 0.5mm | |
| Material | Stainless steel | |
| Head Material | Stainless steel | |
| IP Rating | IP40 | |
| Operating Temperature | 0 to 120 deg C | |
| Includes | Mounting hardware | |
