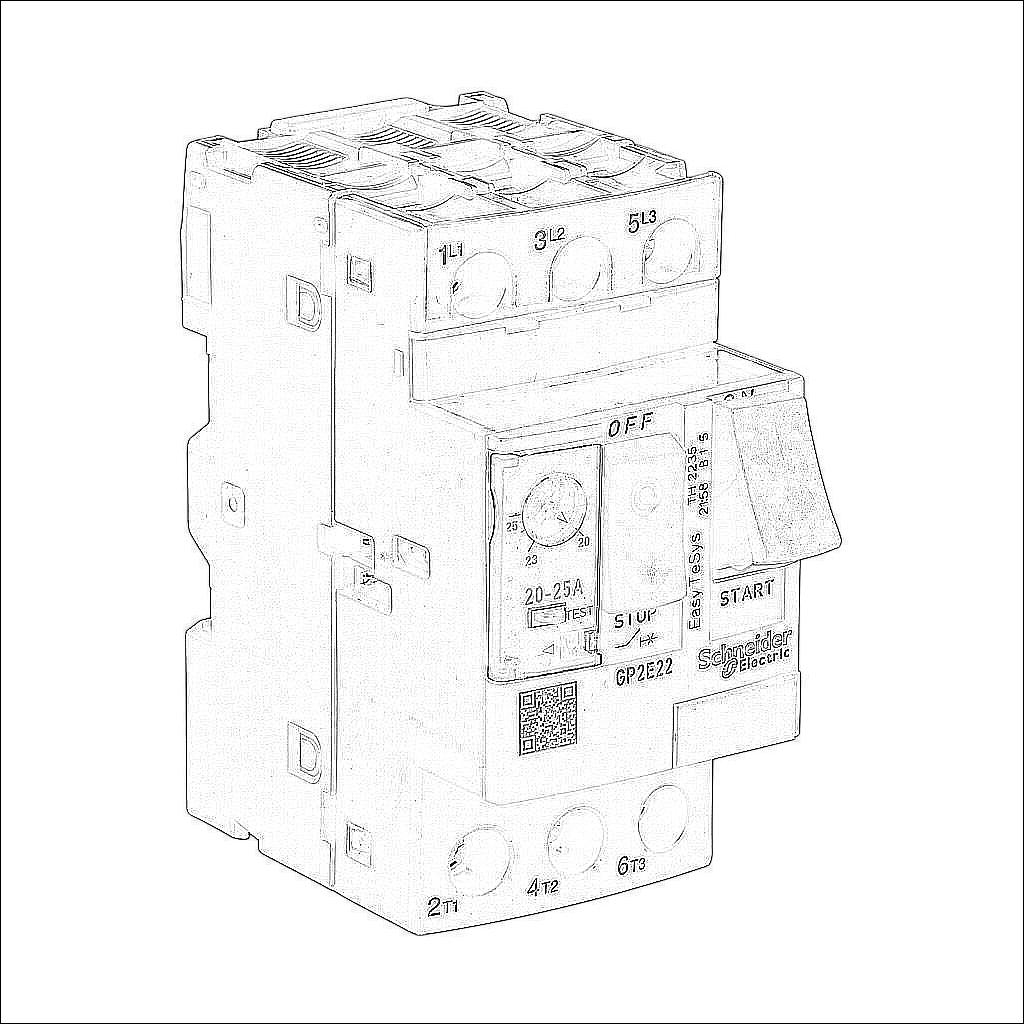

| Technical Data | ||
|---|---|---|
| Brand | Schneider Electric | |
| Series | Easy TeSys | |
| Item | Motor protector | |
| Starter Type | Manual | |
| Actuator Type | Pushbutton | |
| Amperage Rating | 25A | |
| Voltage Rating | 600 VAC | |
| Horsepower Rating | 15hp | |
| Relay Type | Thermal overload | |
| Operation Type | Bi-metallic | |
| Full Load Amperage Range | 20-25 adjustable | |
| Instantaneous Trip Rating | 327A | |
| Number of Poles | 3 | |
| Power Poles | (3) N.O. | |
| Trip Class | Trip Class 10 | |
| Phase Loss Sensitive | Yes | |
| Ground Fault Protection | No | |
| SCCR Rating | 10kA SCCR | |
| UL Rating | UL 60947-4-1 | |
| Frame | 45mm | |
| Mounting | 35mm DIN rail | |
| Connection | Screw terminal | |
