| Technical Data | ||
|---|---|---|

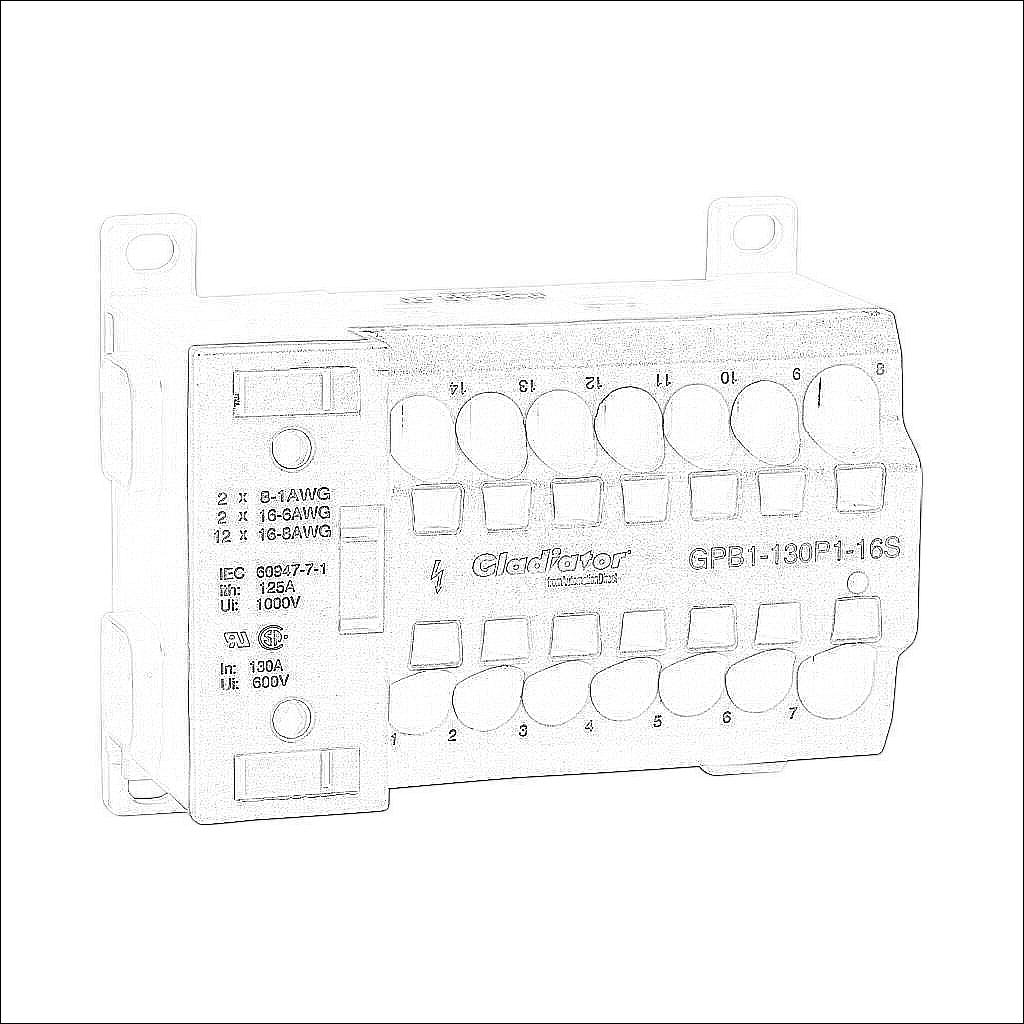

| Brand | Gladiator | |
| Item | Terminal block | |
| Terminal Block Type | Enclosed | |
| Modular | No | |
| Finger-safe | Yes | |
| Amperage Rating | 130A | |
| Number of Poles | 1 | |
| Line Side Openings | 2 (screw) openings accept 1 AWG to 8 AWG & 2 openings accept 6 AWG to 16 AWG | |
| Load Side Openings | 12 openings accept 8 AWG to 16 AWG | |
| Mounting | DIN rail or panel | |
| SCCR Rating | 100kA SCCR | |
| UL Rating | UL 1059 recognized | |
| IP Rating | IP20 | |
