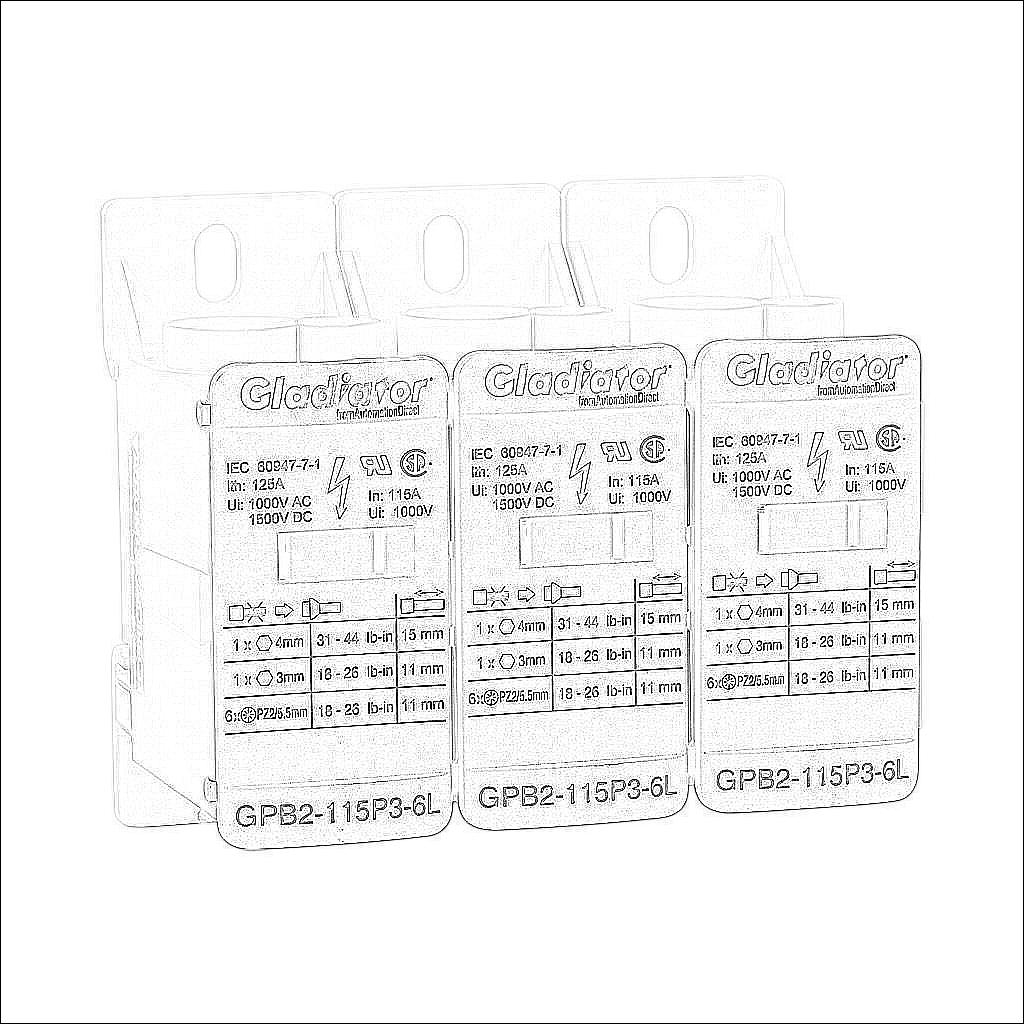

GPB2-115P3-6L

GPB2-115P3-6L

Gladiator enclosed terminal block, finger-safe, 115A, 3-pole, line side: 1 opening accepts 2 AWG to 18 AWG, load side: 1 opening accepts 6 AWG to 10 AWG & 6 openings accept 6 AWG to 14 AWG, DIN rail or panel mount, UL 1059 recognized.

$70
/
Technical Data
BrandGladiator
ItemTerminal block
Terminal Block TypeEnclosed
ModularYes
Finger-safeYes
Amperage Rating115A
Number of Poles3
Line Side Connections1 opening accepts 2 AWG to 18 AWG
Load Side Connections1 opening accepts 6 AWG to 10 AWG & 6 openings accept 6 AWG to 14 AWG
MountingDIN rail or panel
UL RatingUL 1059 recognized
IP RatingIP20
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
