| Technical Data | ||
|---|---|---|
| Brand | Gladiator | |

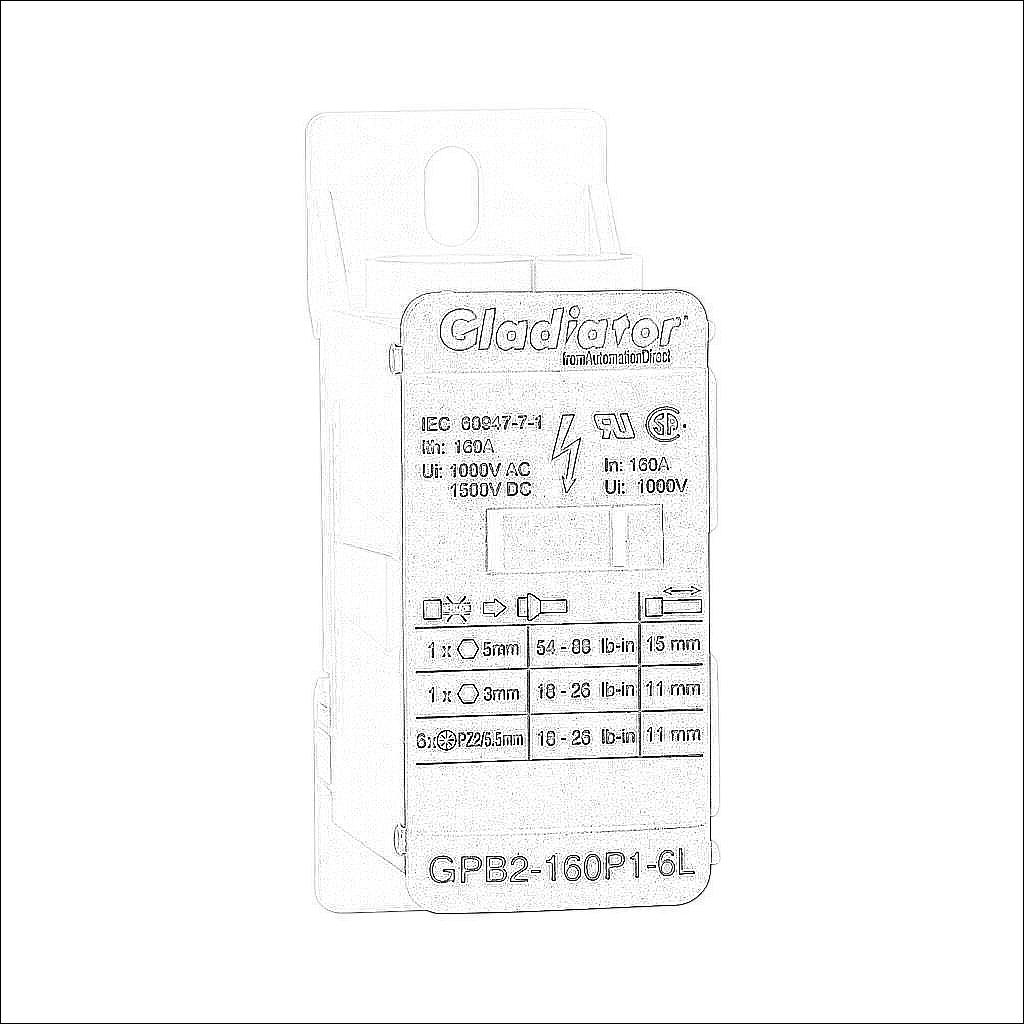

| Item | Terminal block | |
| Terminal Block Type | Enclosed | |
| Modular | Yes | |
| Finger-safe | Yes | |
| Amperage Rating | 160A | |
| Number of Poles | 1 | |
| Line Side Openings | 1 opening accepts 2/0 AWG to 6 AWG | |
| Load Side Openings | 1 opening accepts 6 AWG to 10 AWG & 6 openings accept 6 AWG to 14 AWG | |
| Mounting | DIN rail or panel | |
| SCCR Rating | 100kA SCCR | |
| UL Rating | UL 1059 recognized | |
| IP Rating | IP20 | |
