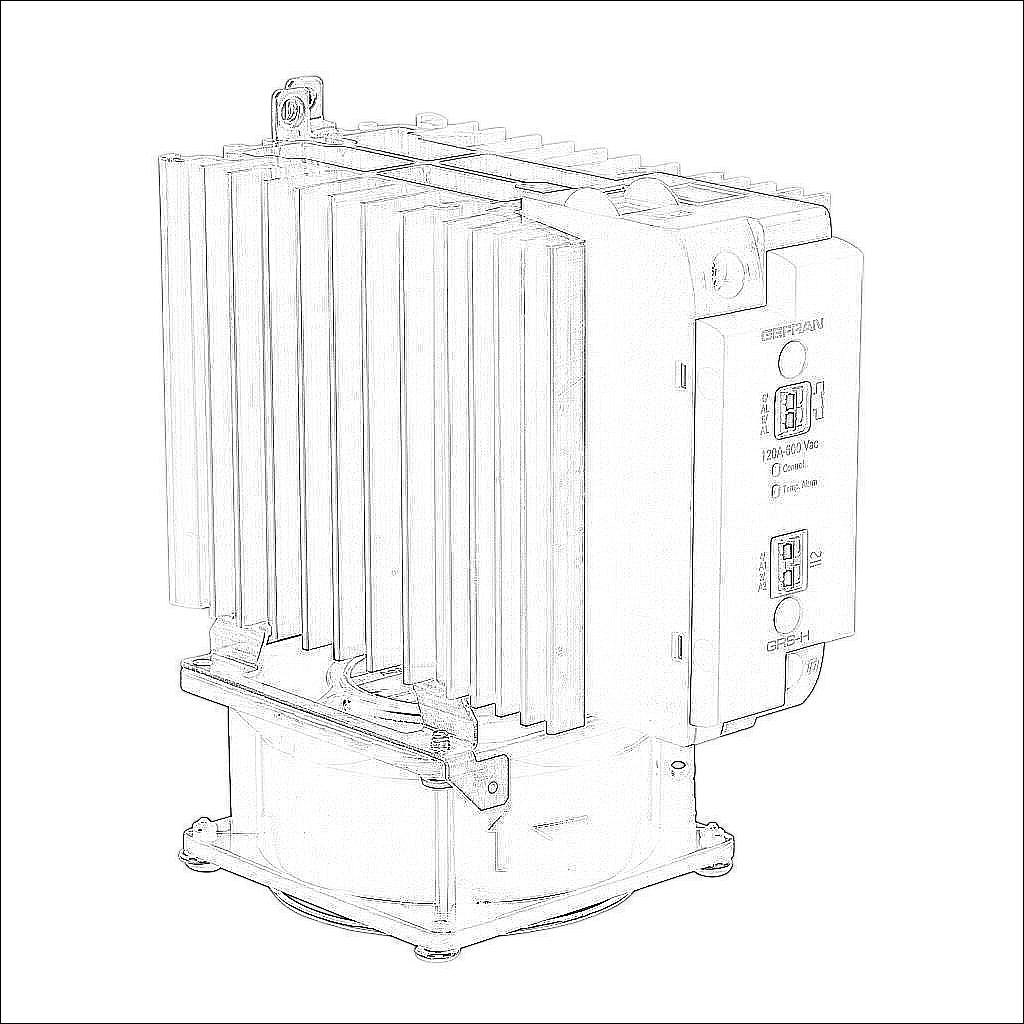

GRSH-120-60-A-5-60

GRSH-120-60-A-5-60

Gefran solid state relay with fan, 35mm DIN rail mount, 20-260 VAC input voltage, SPST, (1) N.O. SCR, 120A contact rating, 24-600 VAC load voltage, push-in spring, overvoltage and thermal protection, external 230 VAC required. Thermal alarm.

$353.75
/
Technical Data
BrandGefran
ItemRelay with fan
Relay TypeSolid state
Mounting35mm DIN rail
Relay Housing TypeFinger-safe
Input Voltage20-260 VAC
Relay ConfigurationSPST
Output Type(1) N.O. SCR
Load Voltage24-600 VAC
Contact Rating120A
Switching TypeZero cross
Connector TypePush-in spring
IndicatorLED
Protection Type(s)
  • overvoltage
  • thermal
External Power Requirement230 VAC
Additional InformationThermal alarm
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
