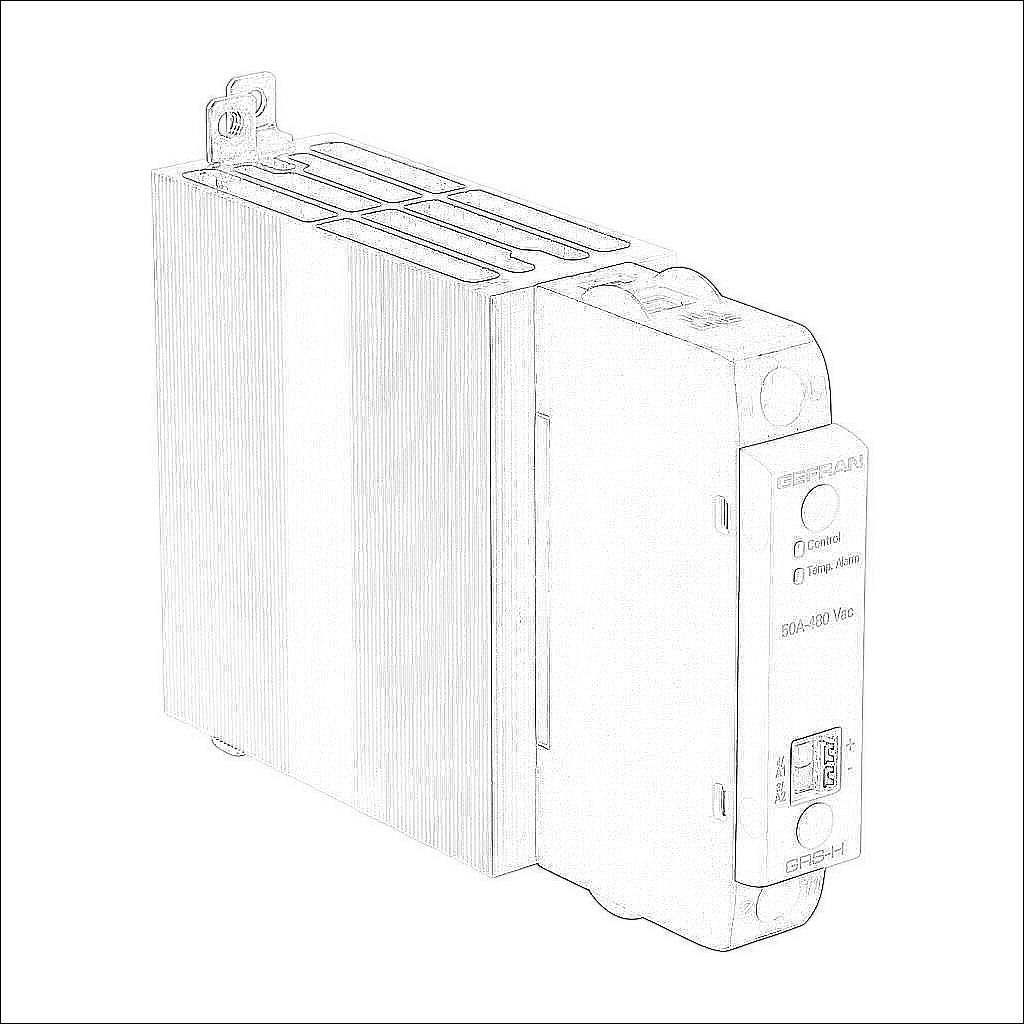

GRSH-50-48-D-0-0

GRSH-50-48-D-0-0

Gefran solid state relay, 35mm DIN rail mount, 6-32 VDC input voltage, SPST, (1) N.O. SCR, 50A contact rating, 24-480 VAC load voltage, push-in spring, overvoltage and thermal protection.

$141.25
/
Technical Data
BrandGefran
ItemRelay
Relay TypeSolid state
Mounting35mm DIN rail
Relay Housing TypeFinger-safe
Input Voltage6-32 VDC
Relay ConfigurationSPST
Output Type(1) N.O. SCR
Load Voltage24-480 VAC
Contact Rating50A
Switching TypeZero cross
Connector TypePush-in spring
IndicatorLED
Protection Type(s)
  • overvoltage
  • thermal
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
