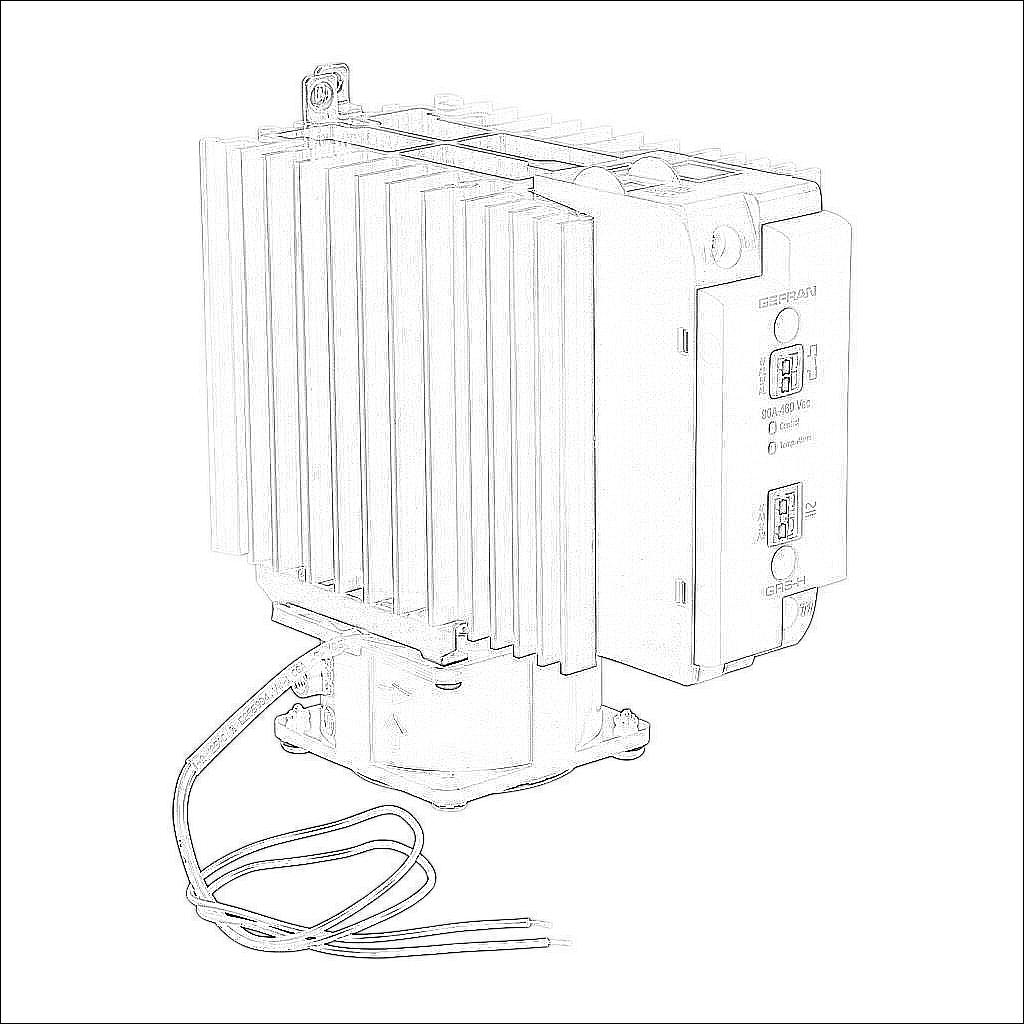

GRSH-90-48-A-5-61

GRSH-90-48-A-5-61

Gefran solid state relay with fan, 35mm DIN rail mount, 20-260 VAC input voltage, SPST, (1) N.O. SCR, 90A contact rating, 24-480 VAC load voltage, push-in spring, overvoltage and thermal protection, external 115 VAC required. Thermal alarm.

$277.50
/
Technical Data
BrandGefran
ItemRelay with fan
Relay TypeSolid state
Mounting35mm DIN rail
Relay Housing TypeFinger-safe
Input Voltage20-260 VAC
Relay ConfigurationSPST
Output Type(1) N.O. SCR
Load Voltage24-480 VAC
Contact Rating90A
Switching TypeZero cross
Connector TypePush-in spring
IndicatorLED
Protection Type(s)
  • overvoltage
  • thermal
External Power Requirement115 VAC
Additional InformationThermal alarm
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
