GRSH-90-60-D-0-61

GRSH-90-60-D-0-61

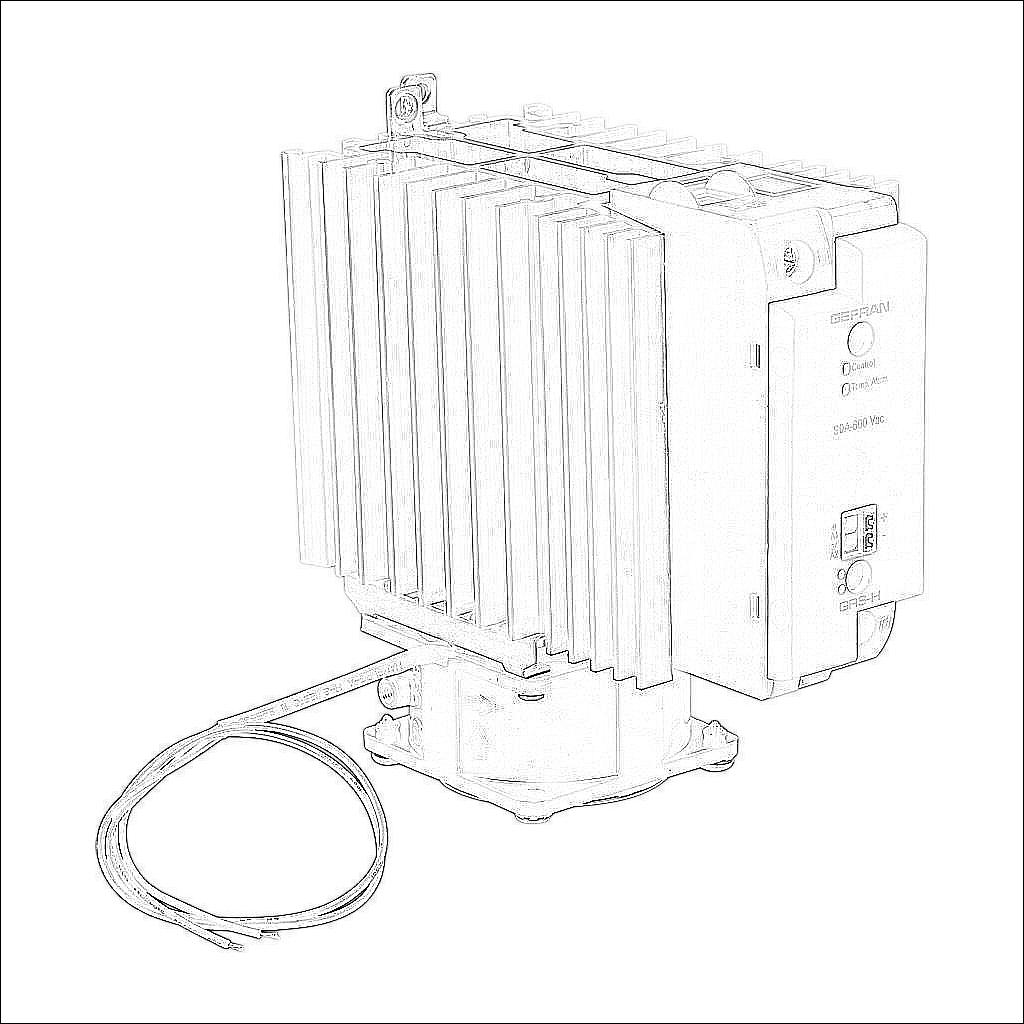

Gefran solid state relay with fan, 35mm DIN rail mount, 6-32 VDC input voltage, SPST, (1) N.O. SCR, 90A contact rating, 24-600 VAC load voltage, push-in spring, overvoltage and thermal protection, external 115 VAC required.

$257.50
/
Technical Data
BrandGefran
ItemRelay with fan
Relay TypeSolid state
Mounting35mm DIN rail
Relay Housing TypeFinger-safe
Input Voltage6-32 VDC
Relay ConfigurationSPST
Output Type(1) N.O. SCR
Load Voltage24-600 VAC
Contact Rating90A
Switching TypeZero cross
Connector TypePush-in spring
IndicatorLED
Protection Type(s)
  • overvoltage
  • thermal
External Power Requirement115 VAC
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
