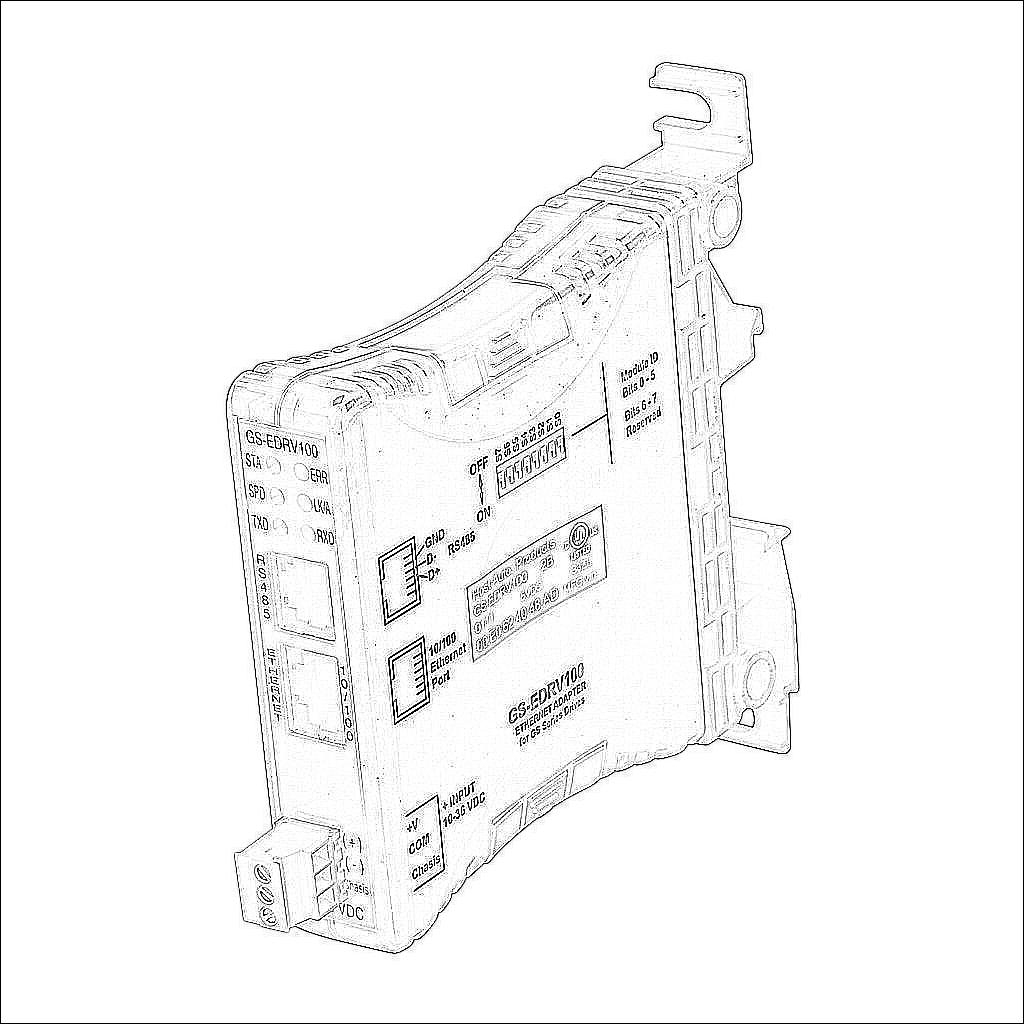

GS-EDRV100

GS-EDRV100

AutomationDirect ethernet communication module, (1) Ethernet 10/100Base-T (RJ45) and (1) RS-232/RS-485 (RJ12) port(s), (12) simultaneous Ethernet connections, (1) serial device(s), 12-48 VDC required. For use with GS1, GS2, GS3 and GS4 series AC drives.

$342.50
/
Technical Data
BrandAutomationDirect
ItemEthernet communication module
Communication Port and Connection Type(s)
  • (1) Ethernet 10/100Base-T (RJ45)
  • (1) RS-232/RS-485 (RJ12)
Port Protocol(s)
  • Modbus RTU
  • Modbus TCP
Port Speed(s)
  • 10/100 Mbps auto-detect
  • up to 115.2k baud
ModesCached
Number of Simultaneous Ethernet Connections12
Number of Serial Devices1
Housing MaterialPlastic
Mounting35mm DIN rail
ApplicationHazardous location rated
External Power Requirement12-48 VDC
For Use WithGS1, GS2, GS3 and GS4 series AC drives
Includes(1) 2ft serial cable
Additional InformationCompatible with GS20(X) AC drives in GS2 mode
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
