| Technical Data | ||
|---|---|---|

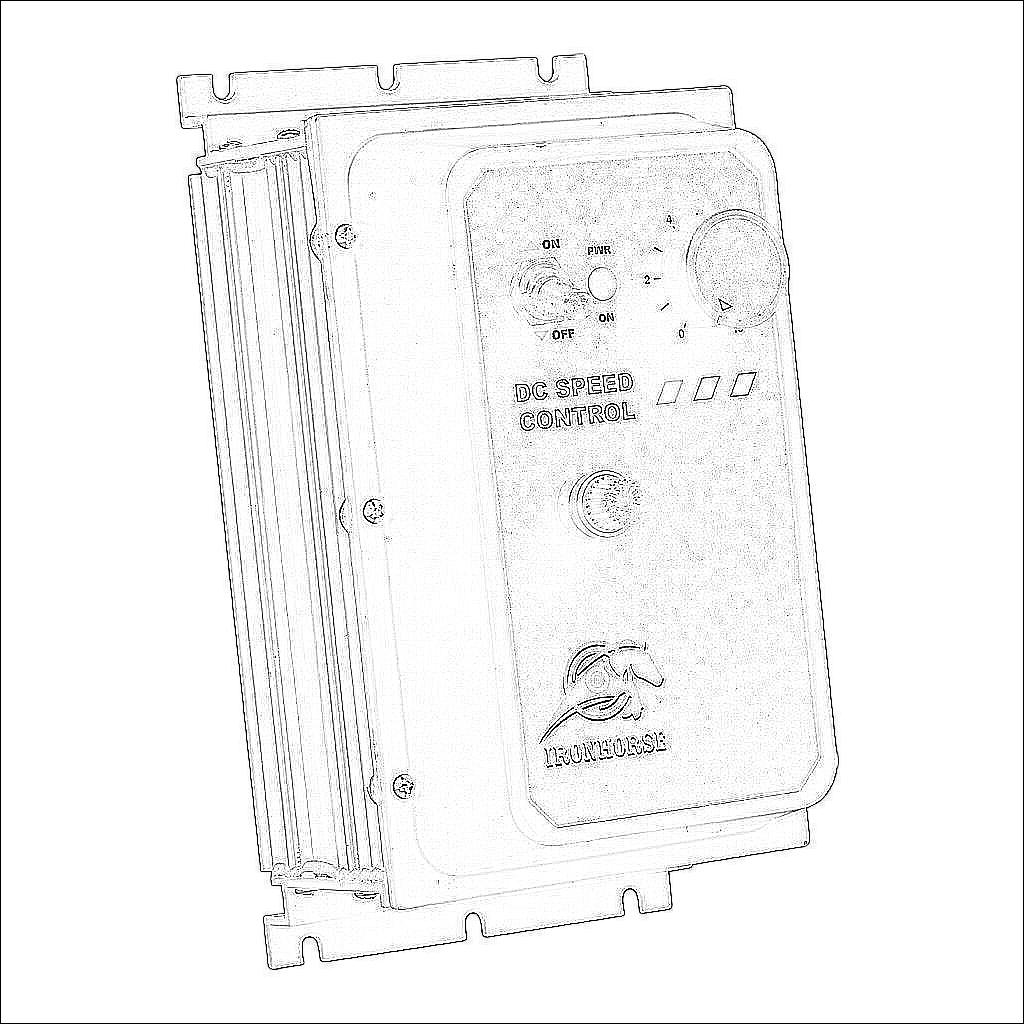

| Brand | IronHorse | |
| Item | Drive | |
| Controller Type | General purpose | |
| Series | GSD4 | |
| Voltage Type | DC | |
| Number of Input Phases | 1 | |
| Nominal Drive Input Voltage | 120/240 VAC | |
| Nominal Drive Output Voltage | Output up to 90/180 VDC | |
| Horsepower by Voltage | 1/8 to 1hp at 90 VDC and 1/4 to 2hp at 180 VDC | |
| Amperage Rating | 10A | |
| Variable Torque Amperage Rating | 150 mA - 10A | |
| Control Mode | DC | |
| Safe Torque Off (STO) | No | |
| Temperature Rating | -10 to 40 deg C | |
| Enclosure Type | NEMA 4X | |
| IP Rating | IP67 | |
| Mounting | Wall | |
| Input Signal | Potentiometer input | |
| On/Off Switch | Yes | |
| Shunt Field Supply | Yes | |
| Output Type | SCR output | |
| Reverse Capability | Field-install | |
| Output Frequency Range | DC | |
| Connector Type | Screw terminals | |
| For Use With | Permanent magnet DC, shunt wound DC and universal motors | |
| Includes | Factory-installed speed potentiometer with knob and 0-100% faceplate | |
