| Technical Data | ||
|---|---|---|

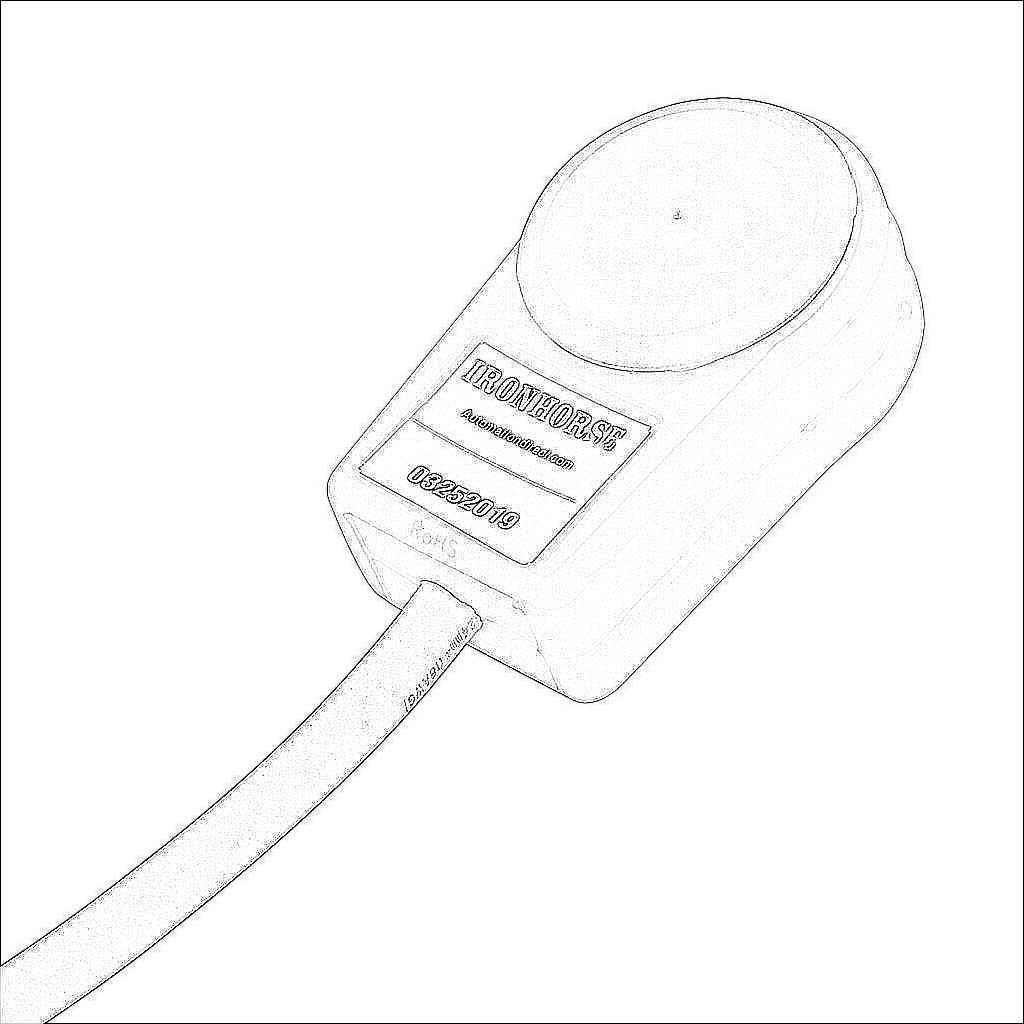

| Brand | IronHorse | |
| Item | Encoder | |
| Replacement | No | |
| Voltage Rating | 5-24 VDC | |
| Encoder Output Type | NPN open collector | |
| Encoder Resolution | 1/10/20 ppr | |
| Shaft Type | Hollow | |
| Frequency Response | 80 Hz/800 Hz/1.6 kHz | |
| Speed Rating | 5000rpm | |
| Flange Mount | No | |
| Encoder Body Diameter | 61mm | |
| Housing Material | Plastic | |
| NEMA Rating | 3R | |
| IP Rating | IP14 | |
| Cable Length | 6ft | |
| Connector Type | Pigtail | |
| For Use With | GSD8 series DC drives | |
| Includes | Mounting hardware and (3) magnets | |
