GVP-211C-24D

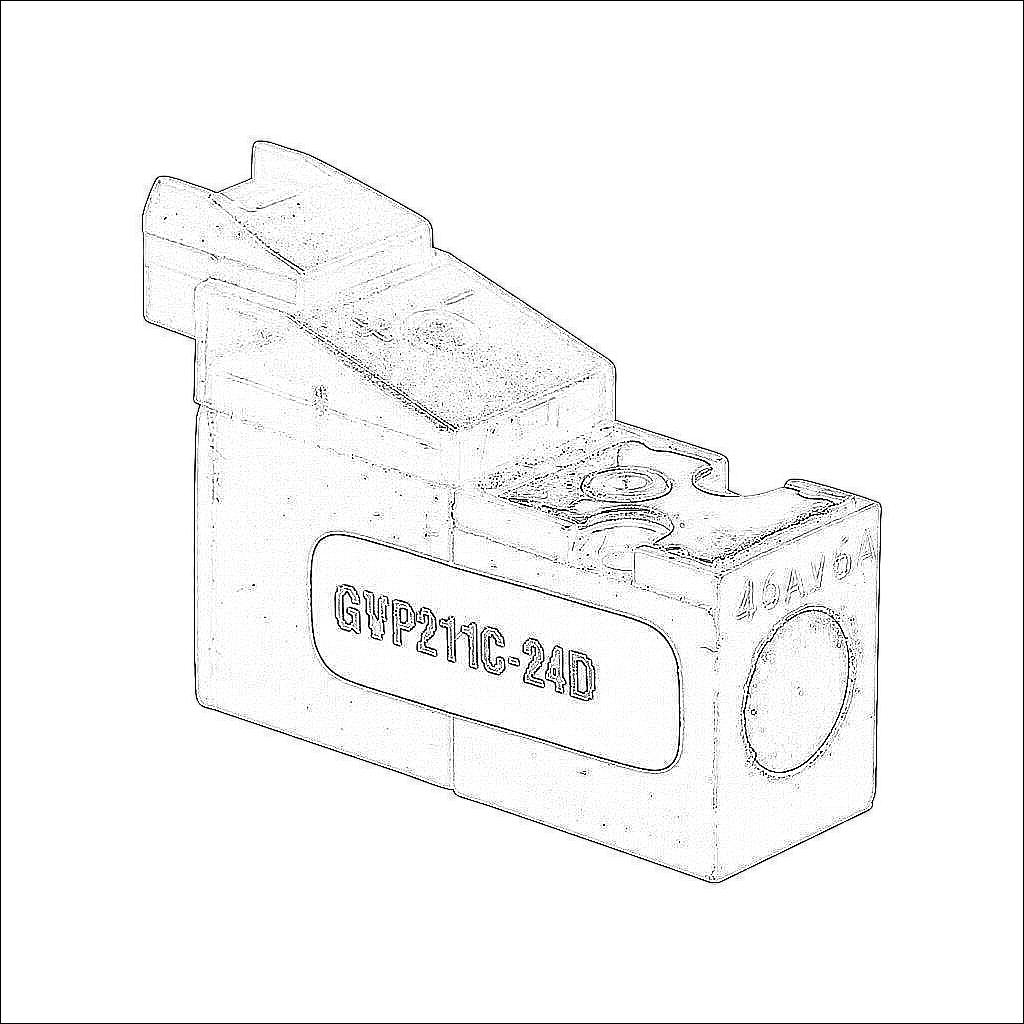

NITRA pneumatic solenoid valve, 2-way, 2-position, N.C., single solenoid spring return, 10mm wide body, Cv=0.013, 24 VDC, miniature pin plug.

$54.38

		Technical Data
	Brand	NITRA
	Item	Valve
	Working Fluid	Air
	Valve Type	Solenoid directional control
	Port Quantity	2-way
	Number Of Positions	2
	Valve Configuration	N.C.
	Action	Single solenoid spring return
	Body Material	Glass-filled nylon
	Body Width	10mm
	Mounting	Optional manifold
	Stackable	No
	Manual Override Type	Momentary
	Flow Coefficient	0.013
	Maximum Operating Pressure	105 psi
	Minimum Operating Pressure	0 psi
	Operating Voltage	24 VDC
	Electrical Connection	Miniature pin plug
	Indicating Type	LED indication
	Form Factor	Miniature
	Includes	Gasket and mounting hardware
