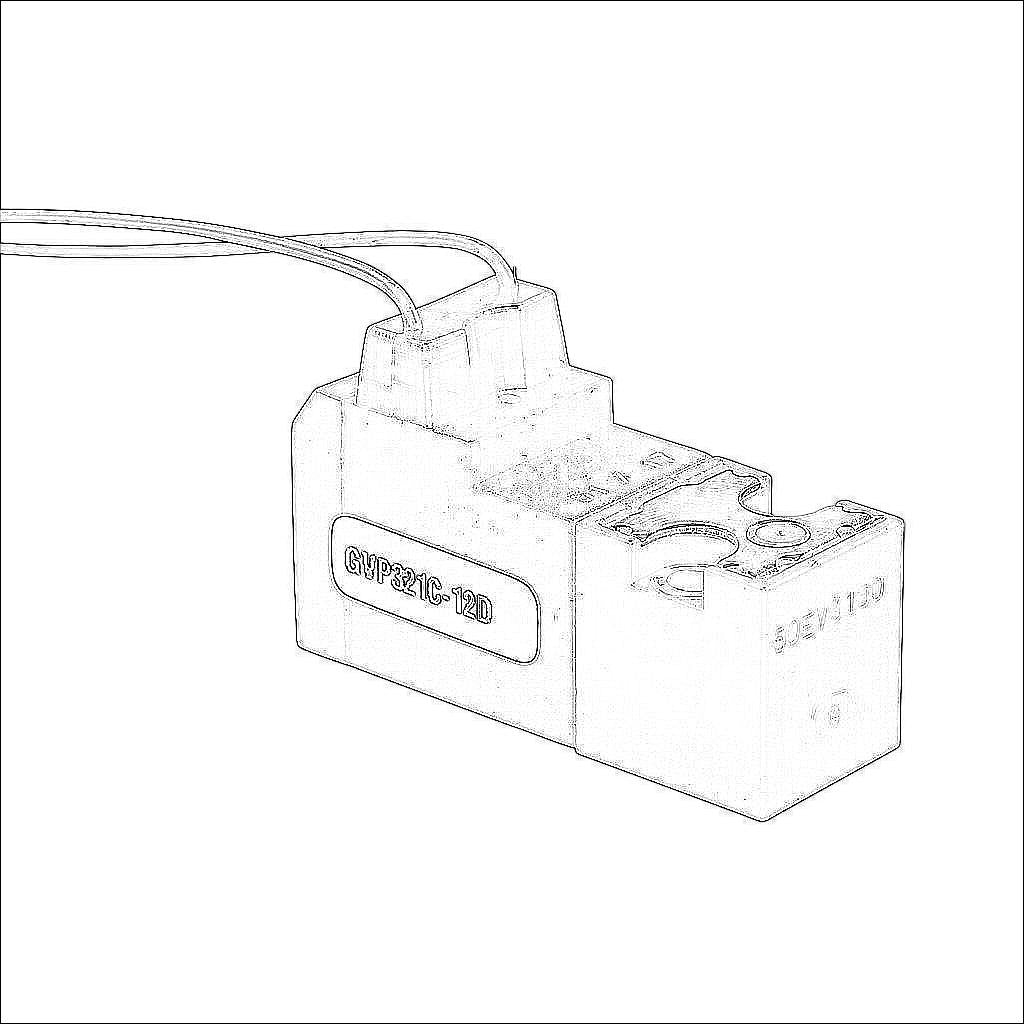

GVP-321C-12D

NITRA pneumatic solenoid valve, 3-way, 2-position, N.C., single solenoid spring return, 15mm wide body, Cv=0.047, 12 VDC, 2.3W, 300mm 24 AWG pigtail.

$47.50

		Technical Data
	Brand	NITRA
	Item	Valve
	Working Fluid	Air
	Valve Type	Solenoid directional control
	Port Quantity	3-way
	Number Of Positions	2
	Valve Configuration	N.C.
	Action	Single solenoid spring return
	Body Material	Glass-filled nylon
	Body Width	15mm
	Mounting	Optional manifold
	Stackable	No
	Manual Override Type	Momentary
	Flow Coefficient	0.047
	Maximum Operating Pressure	105 psi
	Minimum Operating Pressure	0 psi
	Operating Voltage	12 VDC
	Power Rating	2.3W
	Electrical Connection	300mm 24 AWG pigtail
	Form Factor	Miniature
	Includes	Gasket and mounting hardware
