GVP-3C1M2P-PB

GVP-3C1M2P-PB

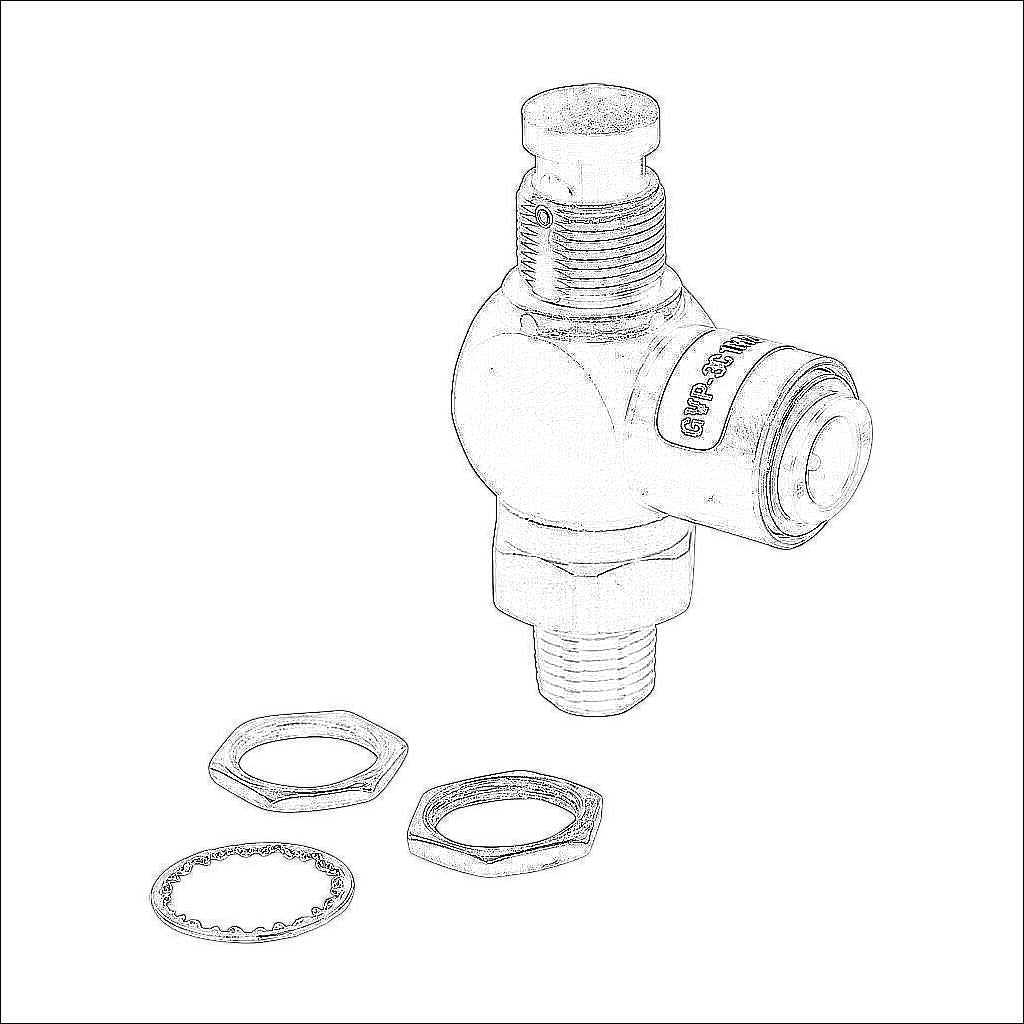

NITRA pneumatic manual valve, 3-port (3-way), 2-position, N.C., pushbutton, spring return, 90-degree ports, 1/8in male NPT inlet(s), 1/4in push-to-connect outlet(s), (1) vent hole exhaust(s), Cv=0.29, through panel mount.

$46.25
/
Technical Data
BrandNITRA
ItemValve
Working FluidAir
Valve TypeManual directional control
Port Quantity3-port (3-way)
Number Of Positions2
Valve ConfigurationN.C.
Operator TypePushbutton
ActionSpring return
Body MaterialAnodized aluminum
MountingThrough panel
Inlet Port1/8in male NPT
Outlet Port1/4in push-to-connect
Exhaust Port(1) vent hole
Port Orientation90-degree
StackableNo
Flow Coefficient0.29
Maximum Operating Pressure125 psi
Minimum Operating Pressure0 psi
IncludesMounting hardware
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
