GVS-331F-TD

GVS-331F-TD

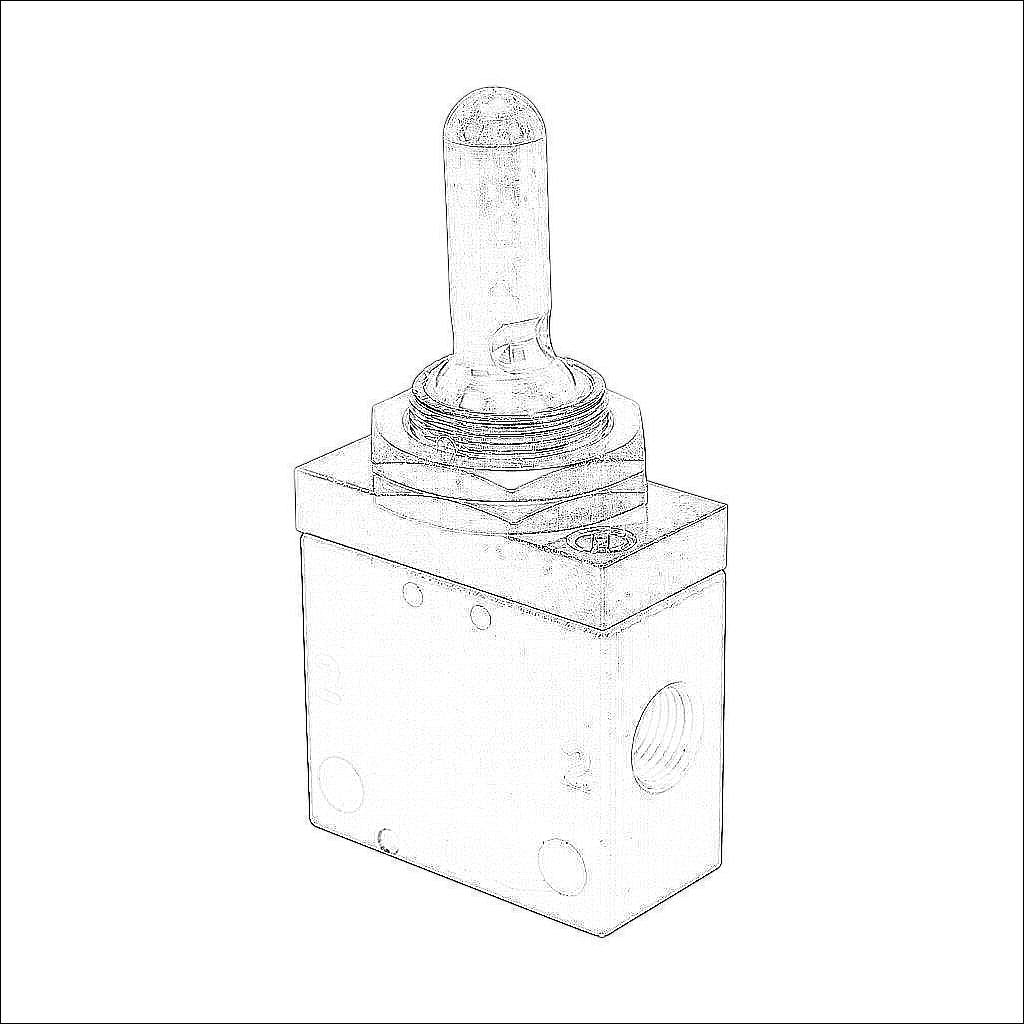

NITRA pneumatic manual valve, 3-port (3-way), 3-position, center exhaust, toggle style actuator, detented, 1/8in female NPT inlet(s), 1/8in female NPT outlet(s), (1) vent hole exhaust(s), Cv=0.54, through panel mount.

$87.50
/
Technical Data
BrandNITRA
ItemValve
Working FluidAir
Valve TypeManual directional control
Port Quantity3-port (3-way)
Number Of Positions3
Valve ConfigurationCenter exhaust
Operator TypeToggle style actuator
ActionDetented
Body MaterialAnodized aluminum
MountingThrough panel
Inlet Port1/8in female NPT
Outlet Port1/8in female NPT
Exhaust Port(1) vent hole
StackableNo
Flow Coefficient0.54
Maximum Operating Pressure125 psi
Minimum Operating Pressure0 psi
IncludesMounting hardware
