GVS-3C0F-PB-SS

GVS-3C0F-PB-SS

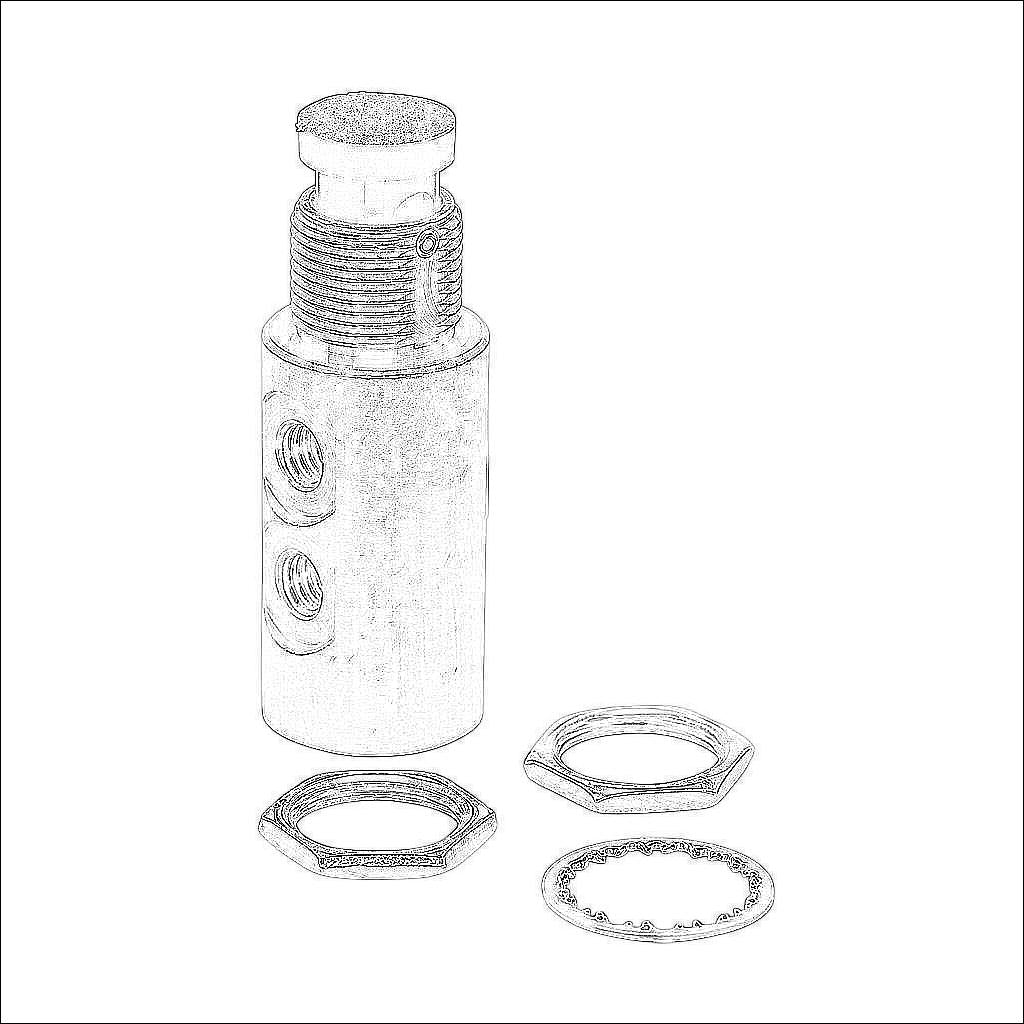

NITRA pneumatic manual valve, 3-port (3-way), 2-position, N.C., pushbutton, spring return, 90-degree ports, #10-32 female UNF inlet(s), #10-32 female UNF outlet(s), #10-32 female threaded exhaust(s), Cv=0.27, through panel mount.

$53.13
/
Technical Data
BrandNITRA
ItemValve
Working FluidAir
Valve TypeManual directional control
Port Quantity3-port (3-way)
Number Of Positions2
Valve ConfigurationN.C.
Operator TypePushbutton
ActionSpring return
Body MaterialStainless steel
MountingThrough panel
Inlet Port#10-32 female UNF
Outlet Port#10-32 female UNF
Exhaust Port#10-32 female threaded
Port Orientation90-degree
StackableNo
Flow Coefficient0.27
Maximum Operating Pressure125 psi
Minimum Operating Pressure-26in Hg
IncludesMounting hardware
