GVS-3C0F-TD-SS

GVS-3C0F-TD-SS

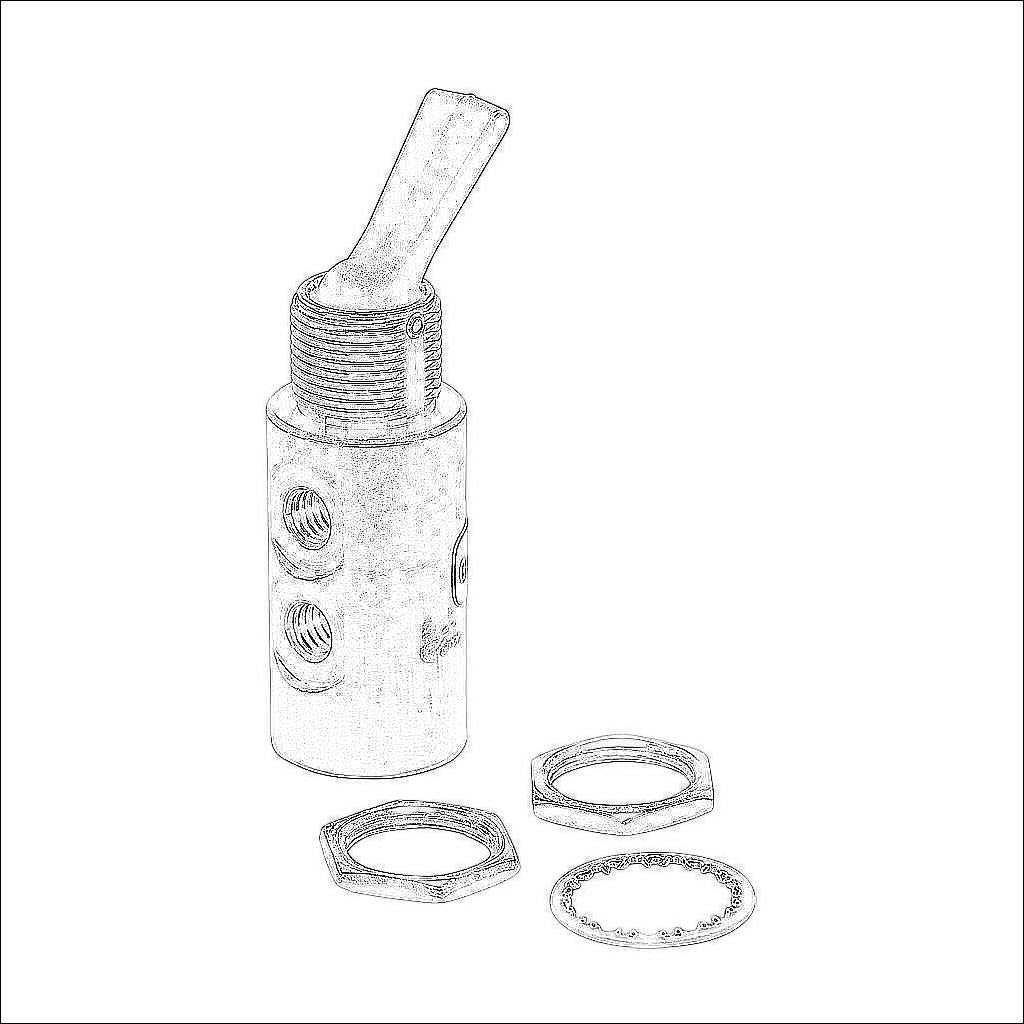

NITRA pneumatic manual valve, 3-port (3-way), 2-position, N.C., toggle style actuator, detented, 90-degree ports, #10-32 female UNF inlet(s), #10-32 female UNF outlet(s), #10-32 female threaded exhaust(s), Cv=0.27, through panel mount.

$55
/
Technical Data
BrandNITRA
ItemValve
Working FluidAir
Valve TypeManual directional control
Port Quantity3-port (3-way)
Number Of Positions2
Valve ConfigurationN.C.
Operator TypeToggle style actuator
ActionDetented
Body MaterialStainless steel
MountingThrough panel
Inlet Port#10-32 female UNF
Outlet Port#10-32 female UNF
Exhaust Port#10-32 female threaded
Port Orientation90-degree
StackableNo
Flow Coefficient0.27
Maximum Operating Pressure125 psi
Minimum Operating Pressure-26in Hg
IncludesMounting hardware
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
