GVS-3C1F-TD

GVS-3C1F-TD

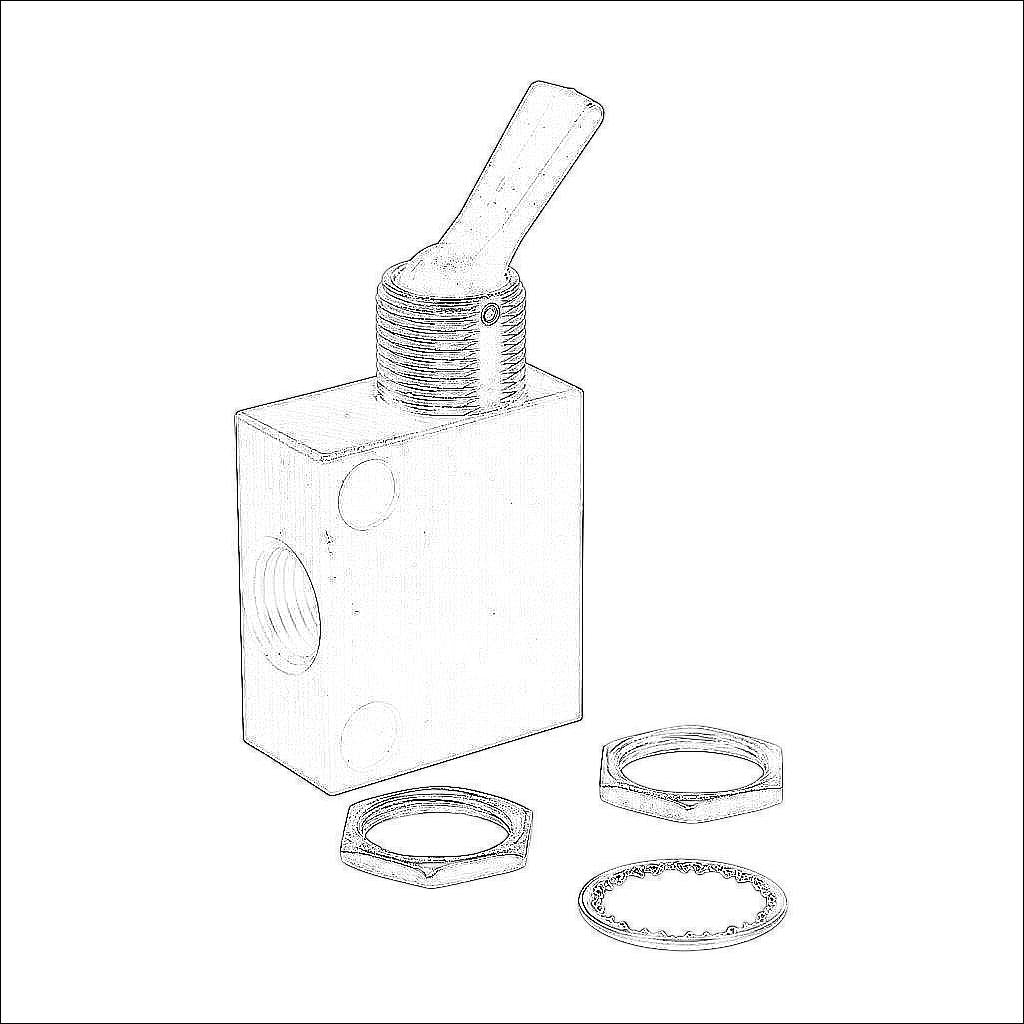

NITRA pneumatic manual valve, 3-port (3-way), 2-position, N.C., toggle style actuator, detented, 1/8in female NPT inlet(s), 1/8in female NPT outlet(s), vent hole exhaust(s), Cv=0.42, through panel mount.

$38.75
/
Technical Data
BrandNITRA
ItemValve
Working FluidAir
Valve TypeManual directional control
Port Quantity3-port (3-way)
Number Of Positions2
Valve ConfigurationN.C.
Operator TypeToggle style actuator
ActionDetented
Body MaterialAnodized aluminum
MountingThrough panel
Inlet Port1/8in female NPT
Outlet Port1/8in female NPT
Exhaust PortVent hole
StackableNo
Flow Coefficient0.42
Maximum Operating Pressure126 psi
Minimum Operating Pressure-26in Hg
IncludesMounting hardware
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
