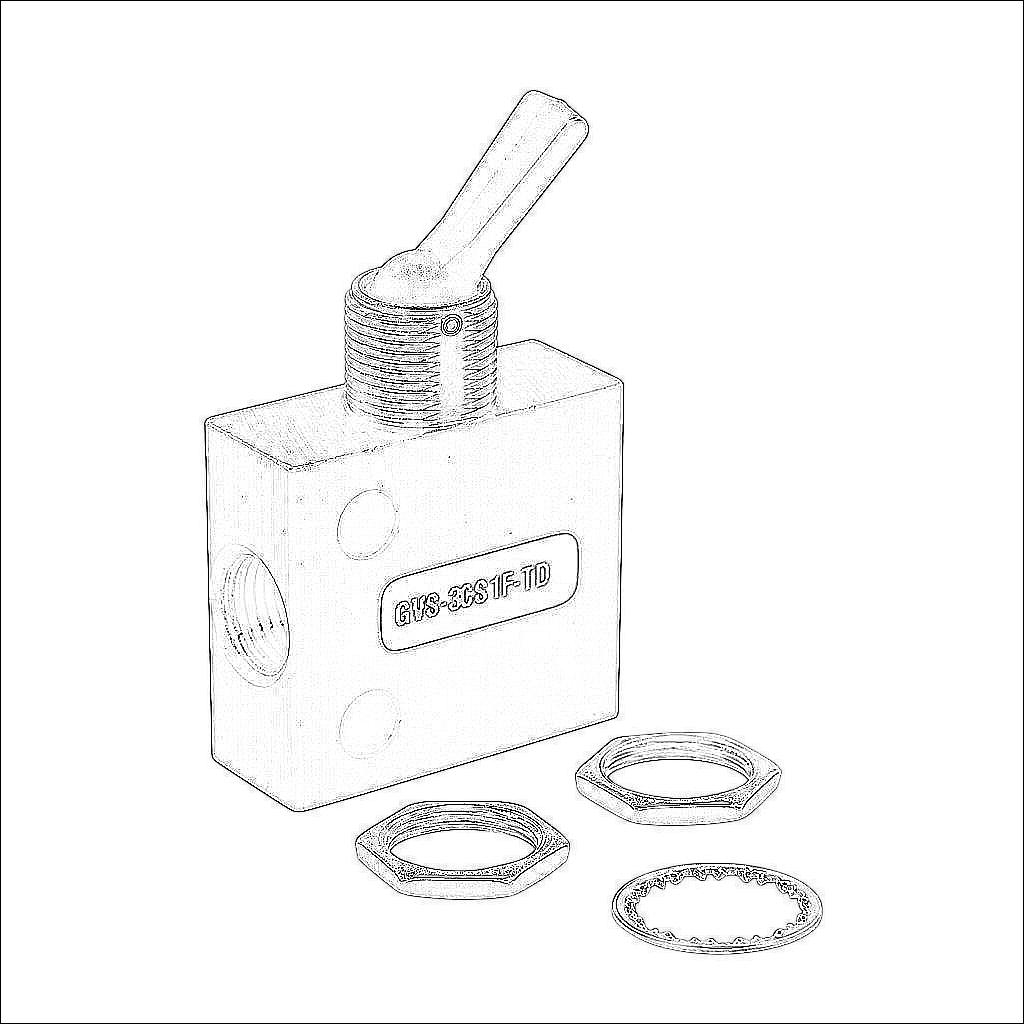

GVS-3CS1F-TD

GVS-3CS1F-TD

NITRA pneumatic manual valve, 3-port (3-way), 2-position, N.C., toggle style actuator, detented, side ports, 1/8in female NPT inlet(s), 1/8in female NPT outlet(s), 1/8in female NPT exhaust(s), Cv=0.42, through panel mount.

$48.75
/
Technical Data
BrandNITRA
ItemValve
Working FluidAir
Valve TypeManual directional control
Port Quantity3-port (3-way)
Number Of Positions2
Valve ConfigurationN.C.
Operator TypeToggle style actuator
ActionDetented
Body MaterialAnodized aluminum
MountingThrough panel
Inlet Port1/8in female NPT
Outlet Port1/8in female NPT
Exhaust Port1/8in female NPT
Port OrientationSide
StackableNo
Flow Coefficient0.42
Maximum Operating Pressure128 psi
Minimum Operating Pressure-26in Hg
IncludesMounting hardware
