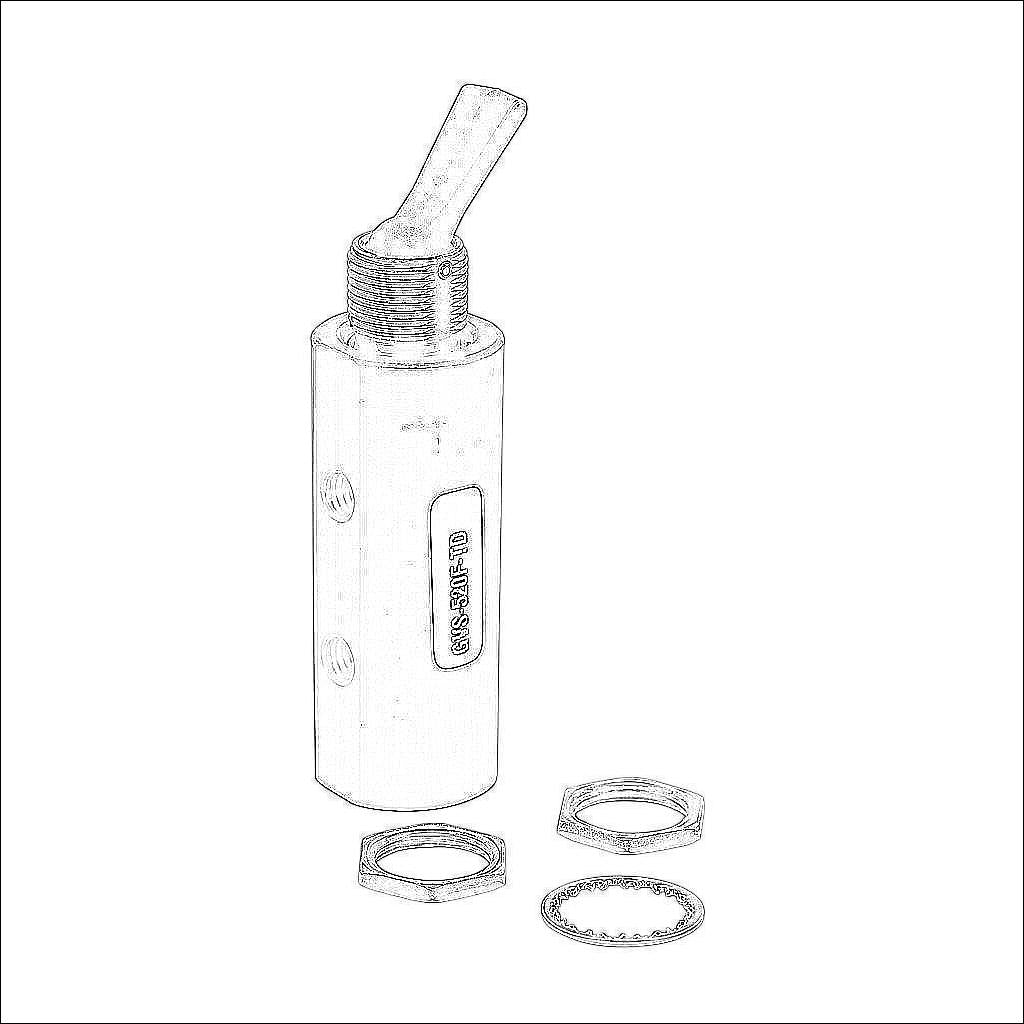

GVS-520F-TD

GVS-520F-TD

NITRA pneumatic manual valve, 5-port (4-way), 2-position, toggle style actuator, detented, #10-32 female UNF inlet(s), #10-32 female UNF outlet(s), #10-32 female threaded exhaust(s), Cv=0.23, through panel mount.

$44.38
/
Technical Data
BrandNITRA
ItemValve
Working FluidAir
Valve TypeManual directional control
Port Quantity5-port (4-way)
Number Of Positions2
Operator TypeToggle style actuator
ActionDetented
Body MaterialAnodized aluminum
MountingThrough panel
Inlet Port#10-32 female UNF
Outlet Port#10-32 female UNF
Exhaust Port#10-32 female threaded
StackableNo
Flow Coefficient0.23
Maximum Operating Pressure127 psi
Minimum Operating Pressure0 psi
IncludesMounting hardware
