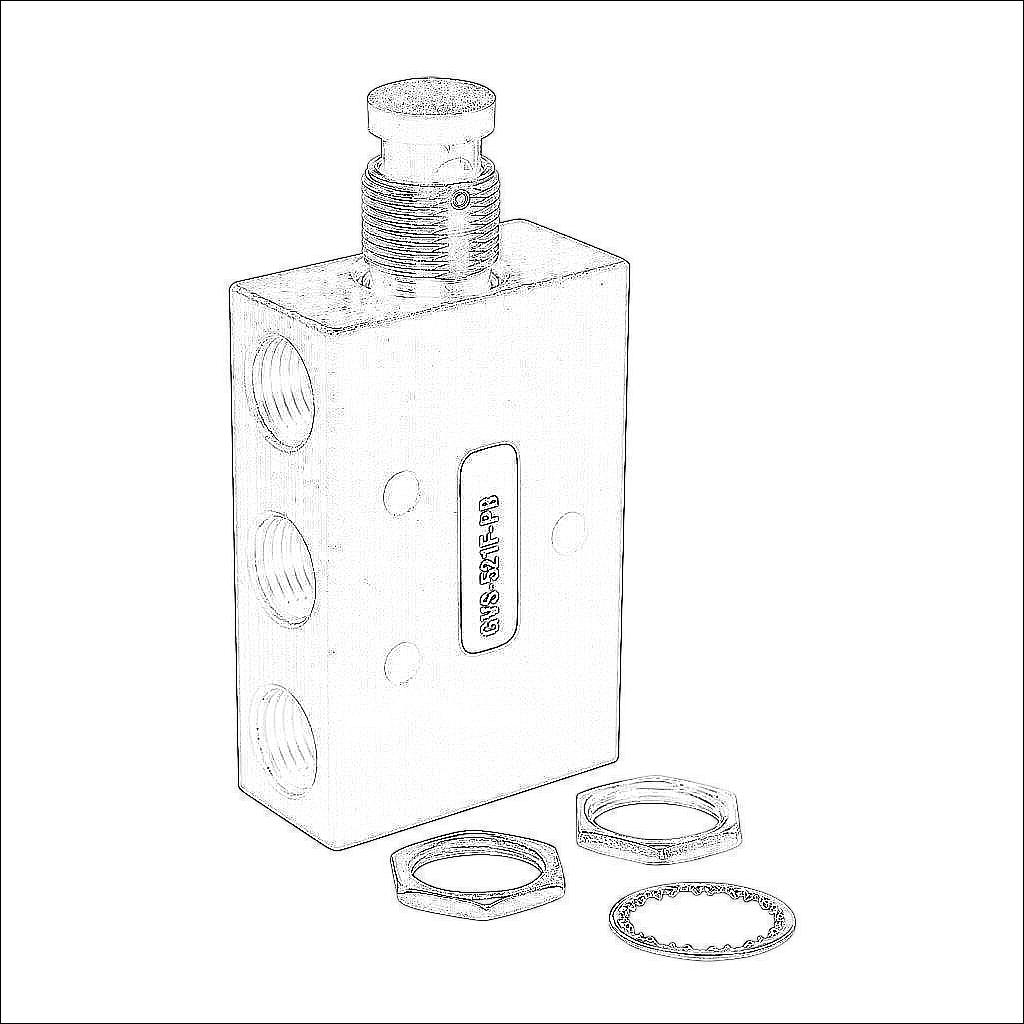

GVS-521F-PB

GVS-521F-PB

NITRA pneumatic manual valve, 5-port (4-way), 2-position, pushbutton, spring return, 1/8in female NPT inlet(s), 1/8in female NPT outlet(s), 1/8in female NPT exhaust(s), Cv=0.37, through panel mount.

$48.13
/
Technical Data
BrandNITRA
ItemValve
Working FluidAir
Valve TypeManual directional control
Port Quantity5-port (4-way)
Number Of Positions2
Operator TypePushbutton
ActionSpring return
Body MaterialAnodized aluminum
MountingThrough panel
Inlet Port1/8in female NPT
Outlet Port1/8in female NPT
Exhaust Port1/8in female NPT
StackableNo
Flow Coefficient0.37
Maximum Operating Pressure128 psi
Minimum Operating Pressure0 psi
IncludesMounting hardware
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
