H0-CTRIO2

H0-CTRIO2

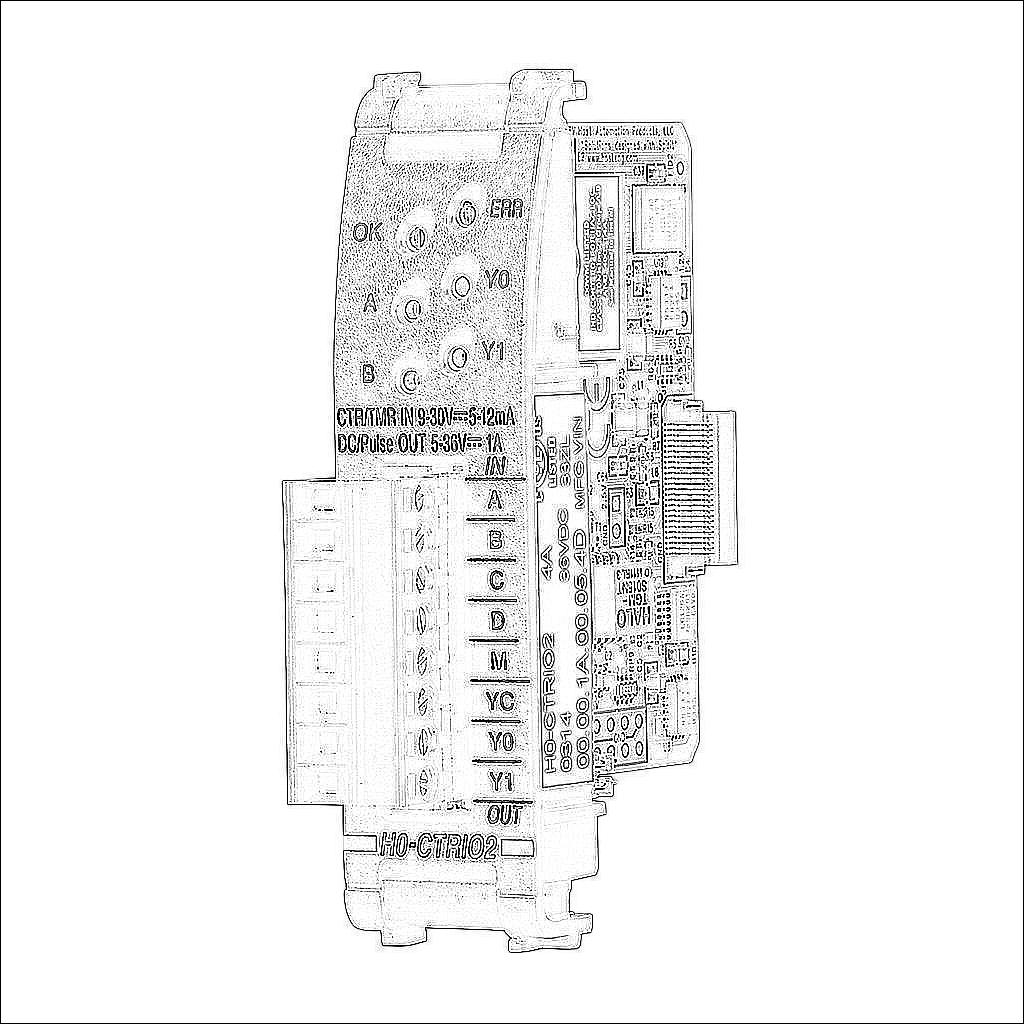

DirectLOGIC DL05/06 pulse combo module, 250 kHz maximum switching frequency, 4 high-speed input point(s), sinking/sourcing, single-ended encoder input(s), 2 high-speed output point(s), sinking/sourcing, single-ended output(s).

$393.75
/
Technical Data
BrandDirectLOGIC
ItemCombo module
I/O Module TypePulse
SeriesDL05/06
Maximum Switching Frequency250 kHz
Number of High-Speed Capable Input Points4
Nominal Input Voltage12-24 VDC
Discrete Input TypeSinking/sourcing
Number of Non-Isolated Input Commons1
Number of Input Channels1
Encoder Input Type
  • push-pull (totem)
Number of High-Speed Capable Output Points2
Nominal Output Voltage6-24 VDC
Discrete Output TypeSinking/sourcing
Number of Non-Isolated Output Commons1
Load Current0.5A/point
Number of Output Channels1
Pulse Output Channel Type
  • NPN open collector
  • PNP open collector
  • push-pull (totem)
High-Speed Counter(s)
  • up to (2) up counters
  • up to (2) down counters
  • up to (2) up/down counters
  • up to (1) quadrature (A and B) counter
Position Scaling
  • up to (2) up counters
  • up to (2) down counters
  • up to (2) up/down counters
  • up to (1) quadrature (A and B) counter
Interval Measurement
  • up to (2) single input (edge) timers
  • up to (2) dual input (dual edge) timers
Duration Measurement
  • up to (2) single input (edge) timers
Frequency Measurement
  • up to (2) up counters
  • up to (2) down counters
  • up to (2) up/down counters
  • up to (1) quadrature (A and B) counter
Table-Driven Input(s)
  • up to (255) programmable limit switches
  • up to (255) preset tables
Output Pulse Mode(s)
  • up to (1) PTO linear step/direction output
  • up to (1) PTO rotary clockwise/counter-clockwise (CW/CCW) output
Axis Profile(s)
  • relative/absolute positioning
  • velocity mode
  • trapezoid
  • S-curve
  • homing
  • jogging
Programming SoftwareDirectSOFT programming software v4.0 or later
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
