| Technical Data | ||
|---|---|---|
| Brand | WON | |

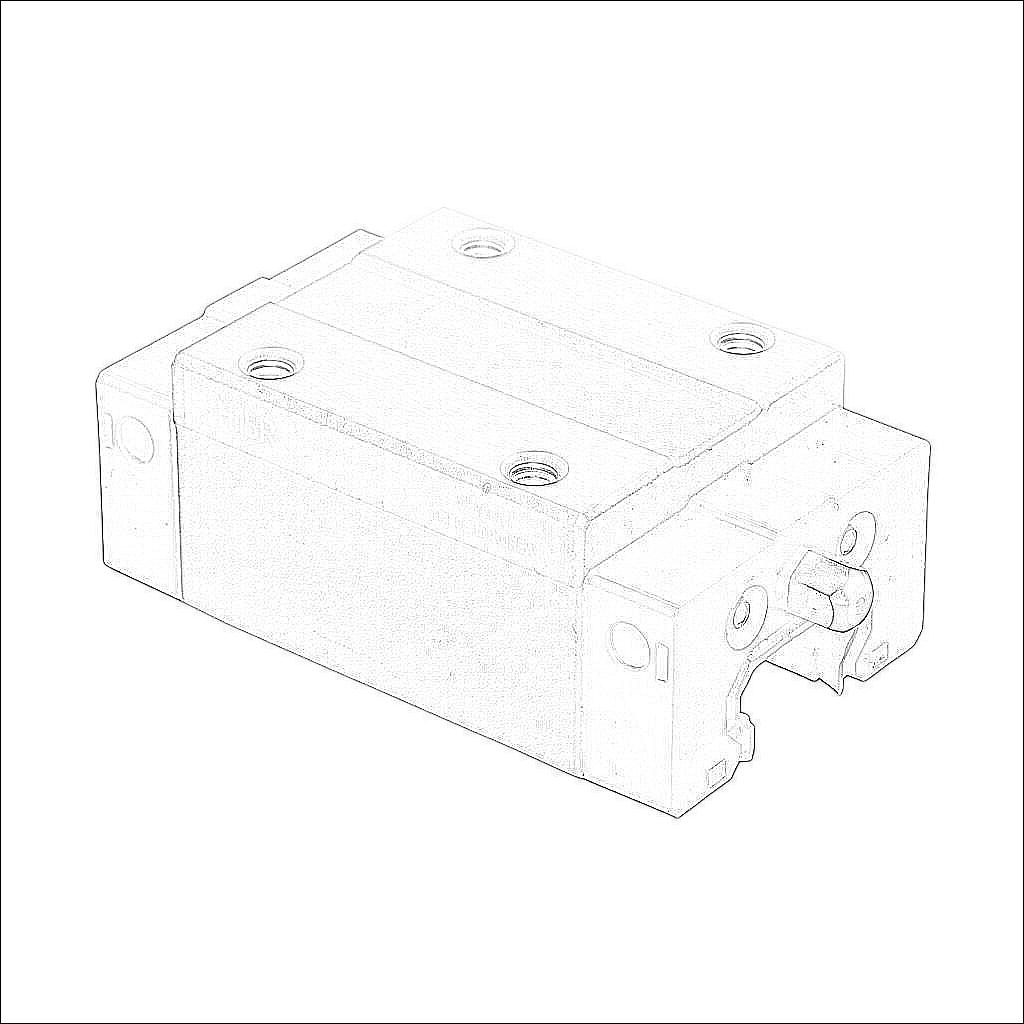

| Item | Standard bearing block | |
| Series | H15 | |
| Bearing Type | Full ball recirculating bearing | |
| Block Type | Rectangular | |
| Seal Type | End seal | |
| Material | Carbon steel | |
| Precision Class | Moderate precision | |
| Bearing Pre-load | Normal preload | |
| Mass | 180g | |
| Static Load Rating (CO) | 16200N | |
| Dynamic Load Rating (C) | 9900N | |
| Pitch Moment Load Rating (Mp) | 115 N-m | |
| Pitch Moment Load Rating, 2 Bearings (Mp2) | 552 N-m | |
| Yaw Moment Load Rating (My) | 115 N-m | |
| Yaw Moment Load Rating, 2 Bearings (My2) | 552 N-m | |
| Roll Moment Load Rating (Mr) | 129 N-m | |
| For Use With | H15 series rails | |
