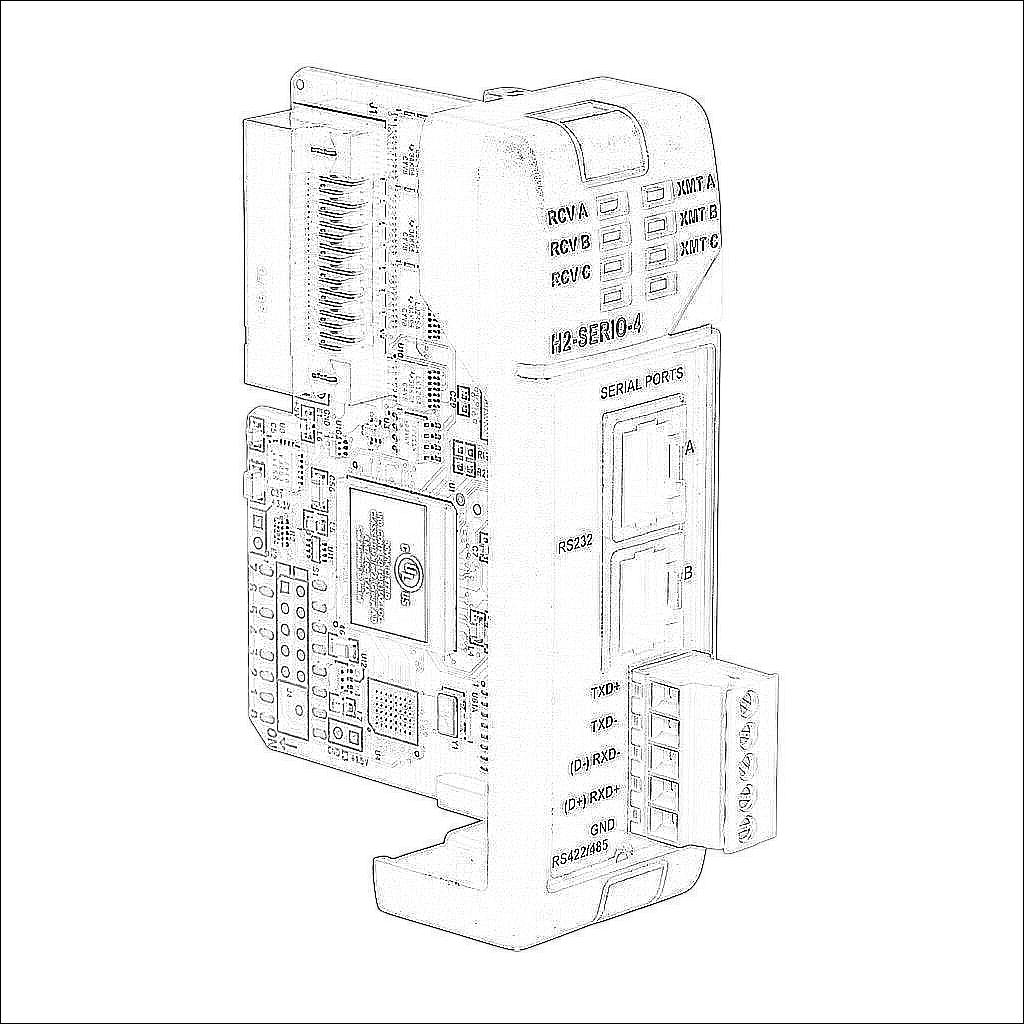

H2-SERIO-4

H2-SERIO-4

DirectLOGIC DL205 communication module, Do-more protocol, Modbus RTU and ASCII, 3 ports, buffered, (2) RS-232 (RJ12) and (1) RS-422/RS-485 port(s). For use with Do-more H2 series PLCs or an H2-EBC100-based system connected to a PC.

$333.75
/
Technical Data
BrandDirectLOGIC
ItemCommunication module
SeriesDL205
Number of Ports3
Buffered PortsYes
Communication Port and Connection Type(s)
  • (2) RS-232 (RJ12)
  • (1) RS-422/RS-485
Port Protocol(s)
  • Do-more protocol
  • Modbus RTU Master/Slave
  • ASCII In/out
  • K-sequence Slave
Port Speed(s)
  • up to 115.2k baud
For Use WithDo-more H2 series PLCs or an H2-EBC100-based system connected to a PC
Programming SoftwareDo-more Designer programming software v1.0 or later
Additional InformationNot compatible with DL205 series PLCs
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
