| Technical Data | ||
|---|---|---|
| Brand | WON | |

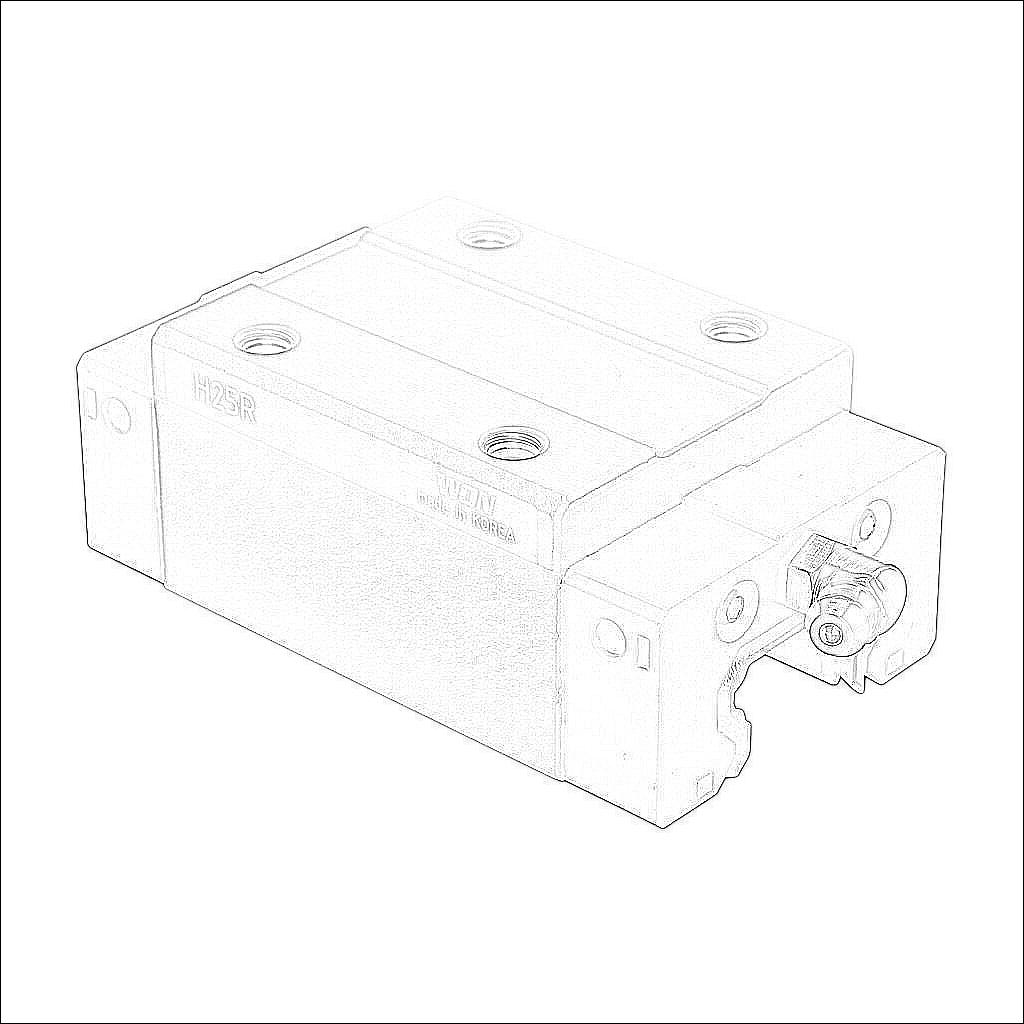

| Item | Standard bearing block | |
| Series | H25 | |
| Bearing Type | Full ball recirculating bearing | |
| Block Type | Rectangular | |
| Seal Type | End seal and inside seal | |
| Material | Carbon steel | |
| Precision Class | Moderate precision | |
| Bearing Pre-load | Normal preload | |
| Mass | 530g | |
| Static Load Rating (CO) | 33100N | |
| Dynamic Load Rating (C) | 22100N | |
| Pitch Moment Load Rating (Mp) | 337 N-m | |
| Pitch Moment Load Rating, 2 Bearings (Mp2) | 1636 N-m | |
| Yaw Moment Load Rating (My) | 337 N-m | |
| Yaw Moment Load Rating, 2 Bearings (My2) | 1636 N-m | |
| Roll Moment Load Rating (Mr) | 398 N-m | |
| For Use With | H25 series rails | |
