| Technical Data | ||
|---|---|---|
| Brand | WON | |

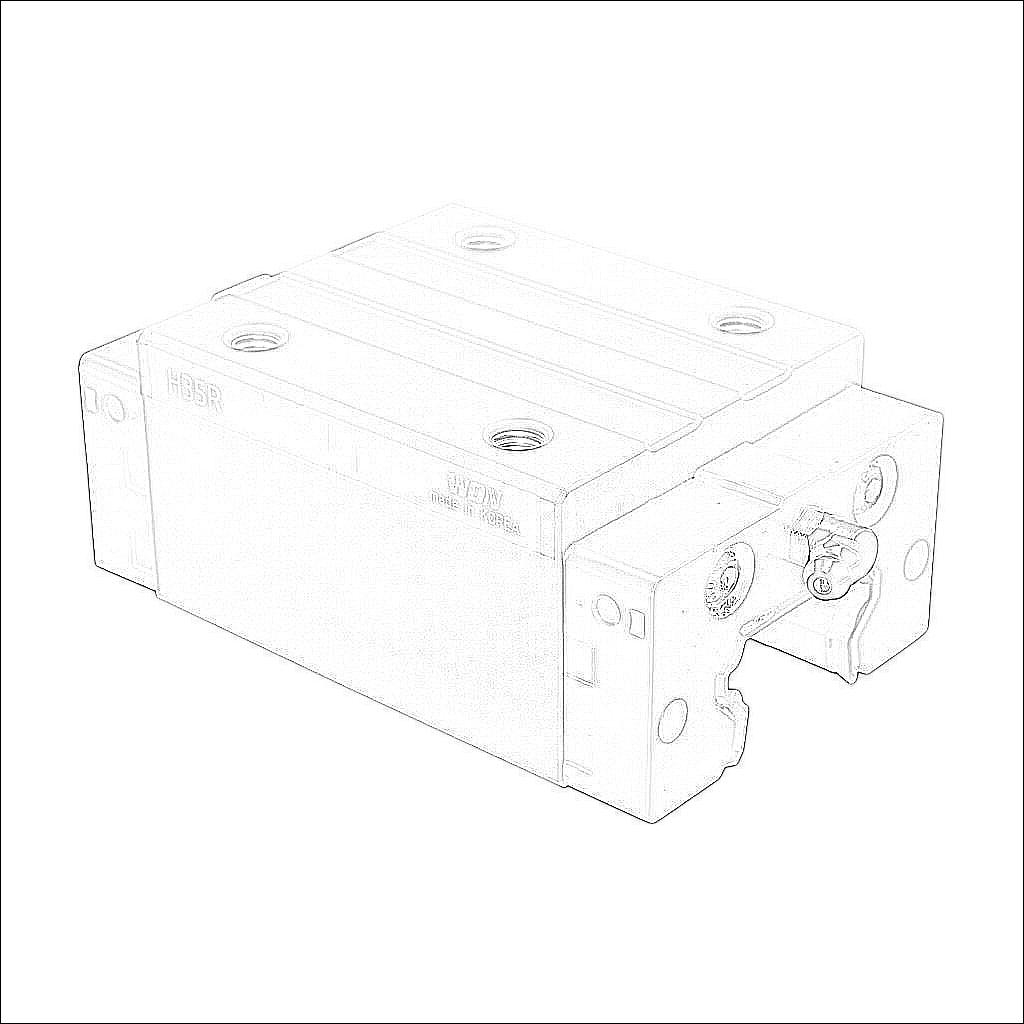

| Item | Standard bearing block | |
| Series | H35 | |
| Bearing Type | Full ball recirculating bearing | |
| Block Type | Rectangular | |
| Seal Type | End seal | |
| Material | Carbon steel | |
| Precision Class | Moderate precision | |
| Bearing Pre-load | Normal preload | |
| Mass | 1500g | |
| Static Load Rating (CO) | 74600N | |
| Dynamic Load Rating (C) | 51100N | |
| Pitch Moment Load Rating (Mp) | 1062 N-m | |
| Pitch Moment Load Rating, 2 Bearings (Mp2) | 5012 N-m | |
| Yaw Moment Load Rating (My) | 1062 N-m | |
| Yaw Moment Load Rating, 2 Bearings (My2) | 5012 N-m | |
| Roll Moment Load Rating (Mr) | 1298 N-m | |
| For Use With | H35 series rails | |
