H401YF02Z1CF5

H401YF02Z1CF5

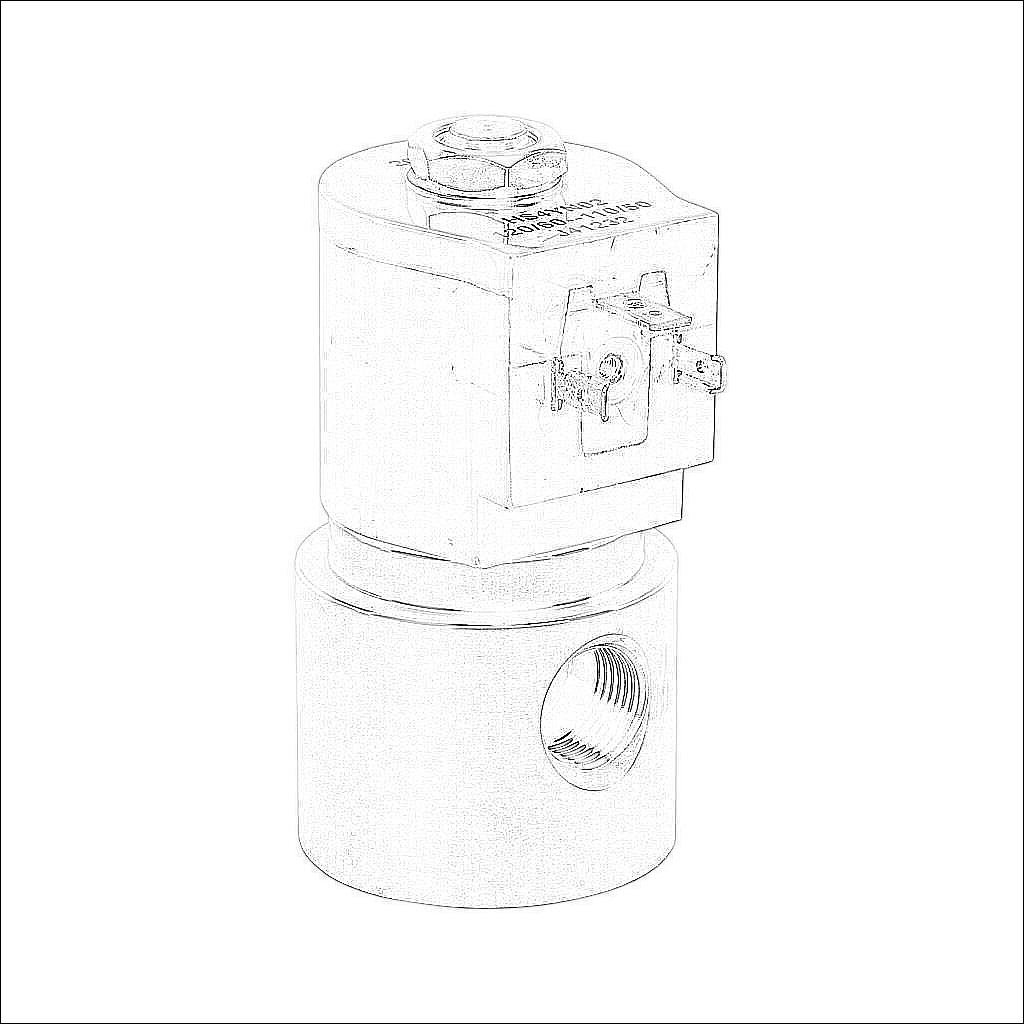

GC Valves solenoid valve, 2-port (2-way), 2-position, N.C., stainless steel body, Viton/PTFE seal(s), 3/8in female NPT inlet(s), 3/8in female NPT outlet(s), Cv=1.5, 0 psi minimum operating pressure, 120 VAC operating voltage, 18mm DIN style wiring plug.

$313.75
/
Technical Data
BrandGC Valves
ItemValve
Working FluidPneumatic, inert gas, water or coolant
Valve TypeSolenoid process
Port Quantity2-port (2-way)
Number Of Positions2
Valve ConfigurationN.C.
ActionSingle solenoid spring return
Body MaterialStainless steel
Seal MaterialViton/PTFE
Inlet Port3/8in female NPT
Outlet Port3/8in female NPT
Flow Coefficient1.5
Maximum Operating Pressure2200 psi
Minimum Operating Pressure0 psi
Working Fluid Temperature230 deg F maximum
Operating Voltage120 VAC
Power Rating10 VA
Electrical Connection18mm DIN style wiring plug
