| Technical Data | ||
|---|---|---|
| Brand | IronHorse | |

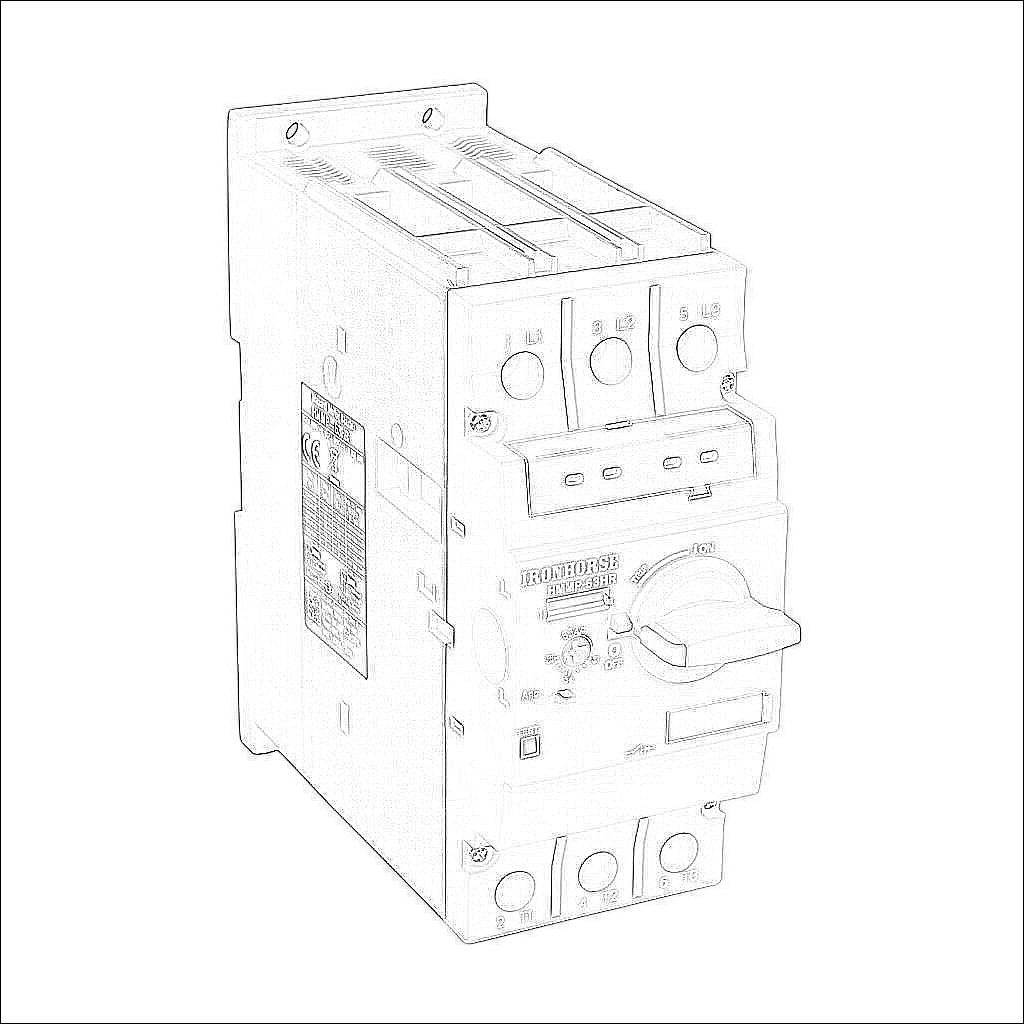

| Item | Motor protector | |
| Starter Type | Manual | |
| Actuator Type | Rotary | |
| Amperage Rating | 63A | |
| Voltage Rating | 600 VAC | |
| Horsepower Rating | 40hp | |
| Relay Type | Thermal overload | |
| Operation Type | Bi-metallic | |
| Full Load Amperage Range | 45-63A adjustable | |
| Instantaneous Trip Rating | 819A | |
| Number of Poles | 3 | |
| Power Poles | (3) N.O. | |
| Trip Class | Trip Class 10 | |
| Phase Loss Sensitive | Yes | |
| Ground Fault Protection | No | |
| SCCR Rating | 50kA SCCR | |
| UL Rating | UL 508 rated | |
| Frame | 55mm | |
| Mounting | 35mm DIN rail or panel | |
| Connection | Screw terminal | |
| Additional Information | For UL Type E listing, short circuit alarm contact block HPX1-MALM11-S must be added. Suitable as a motor disconnect | |
