| Technical Data | ||
|---|---|---|
| Brand | Contrinex | |

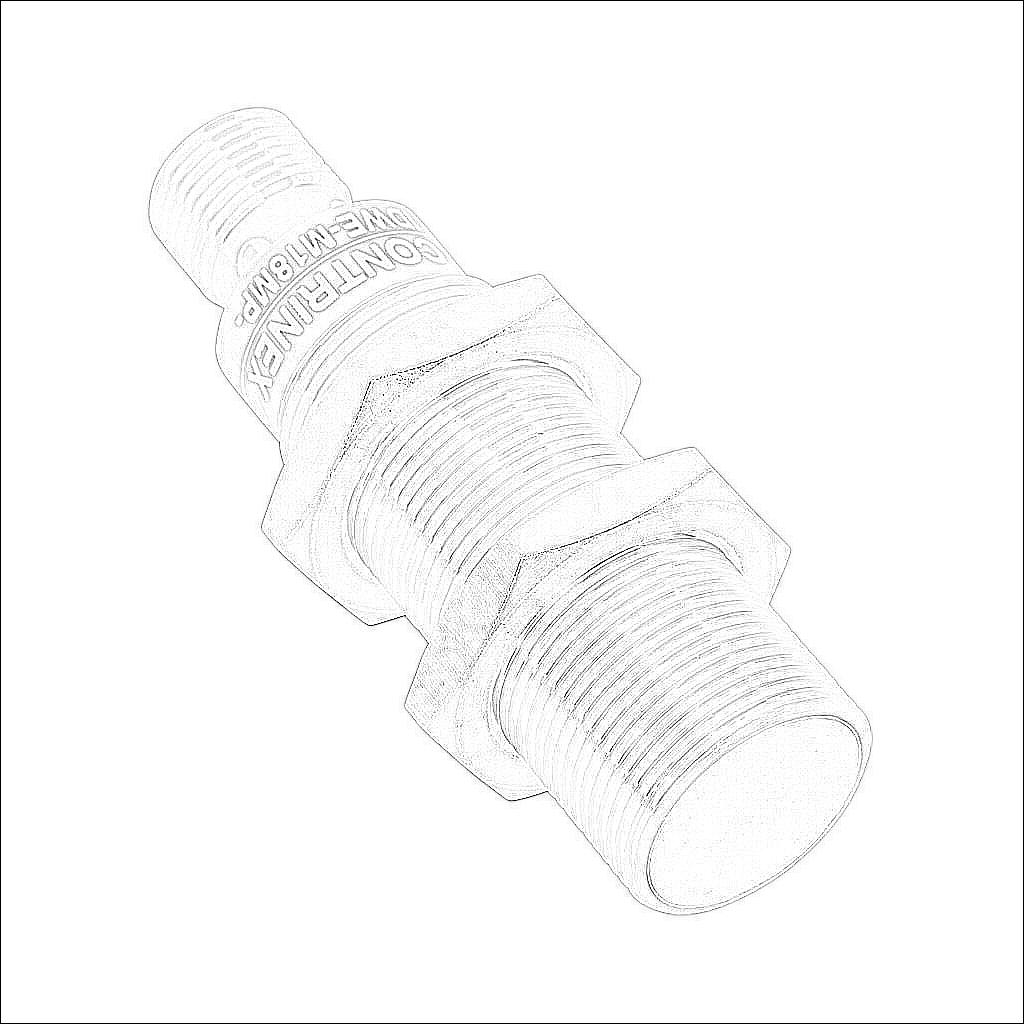

| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | Standard duty, IO-Link, smart output and measurement | |
| Shape | Tubular | |
| Housing Size | 18mm diameter x 63.5mm body | |
| Housing Material | Chrome-plated brass | |
| Barrel Type | Threaded | |
| Sensing Method | Triple sensing | |
| Adjustable | Yes | |
| Number of Wires | 4 | |
| Switching Output | PNP | |
| Operation Mode | N.O. output | |
| Sensing Distance | 10mm | |
| Mounting Type | Flush | |
| IO-Link Compatible | Yes | |
| Switching Frequency | 125 Hz | |
| Operating Voltage | 10-30 VDC | |
| Operating Temperature | -25 to 70 deg C | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP67 | |
| Connection | 4-pin M12 quick-disconnect | |
| Communication Port and Connection Type(s) | (1) 4-pin M12 A-coded (IO-Link) port(s) | |
| Port Protocol(s) | IO-Link Class A Device | |
| Port Speed(s) | IO-Link COM2 | |
| IO-Link Version | IO-Link v1.1.2 (compatible with v1.1.3) | |
| Standard I/O Mode Supported | Yes | |
| Includes | Mounting hardware | |
| Additional Information | Purchase cable separately | |
