IM3-4-BD-8-1-4-N-B

Name: IM3-4-BD-8-1-4-N-B
Brand: CITO
SKU: IM3-4-BD-8-1-4-N-B
Price: 105.00 USD
Availability: InStock

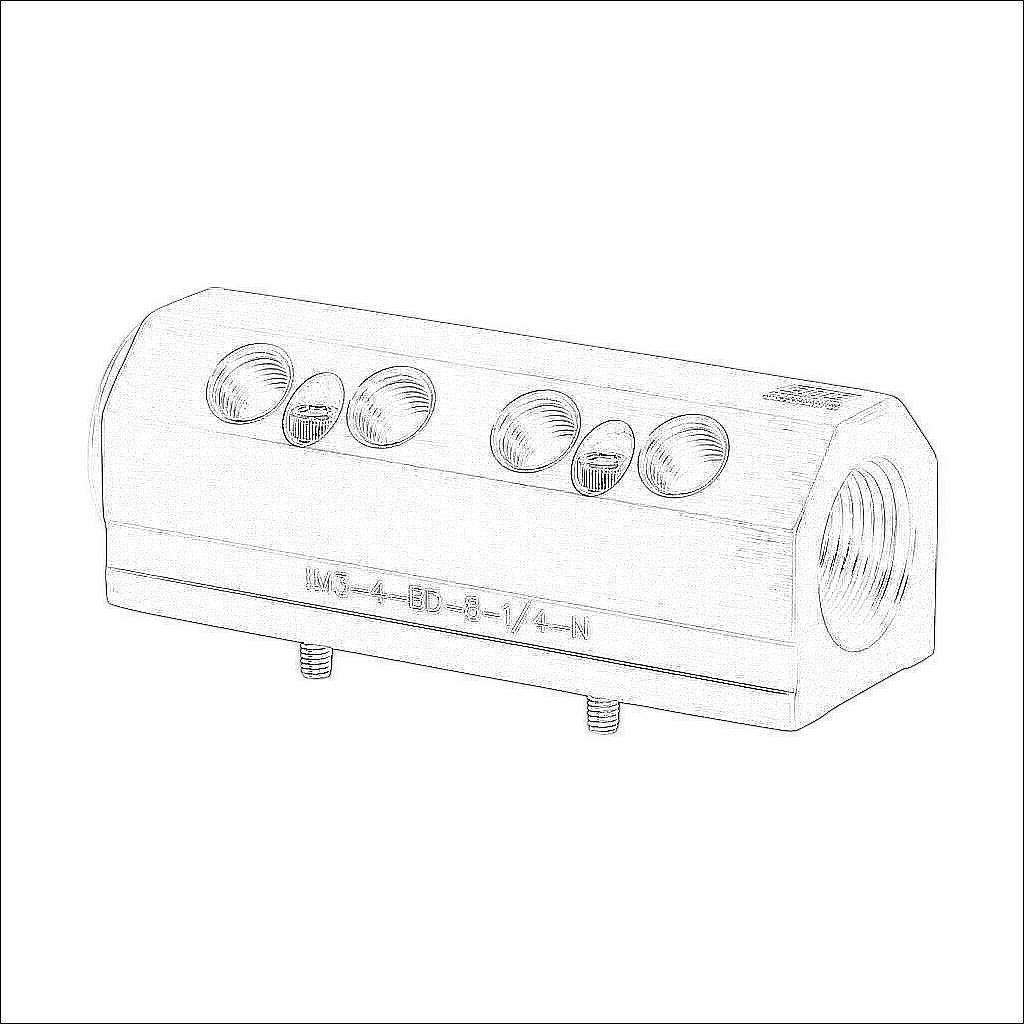

CITO Inline air, coolant, oil or water manifold, anodized aluminum, blue, rectangular, 3000 psi maximum operating pressure, (4) stations, (2) 3/4in female NPT inlet(s), (8) 1/4in female NPT outlet(s), 45-deg and 135-deg orientation.

$105

/

		Technical Data
	Brand	CITO
	Item	Manifold
	Series	Inline
	Working Fluid	Pneumatic, coolant, oil or water
	Material	Anodized aluminum
	Color	Blue
	Shape	Rectangular
	Body Length	4.25in
	Number of Stations	4
	Maximum Operating Pressure	3000 psi
	Inlet Port	(2) 3/4in female NPT
	Outlet Port	(8) 1/4in female NPT
	Hole Orientation	45-deg and 135-deg
	Includes	IM-3030 end cap and mounting screws

Downloads

Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
