| Technical Data | ||
|---|---|---|
| Brand | IDEM | |

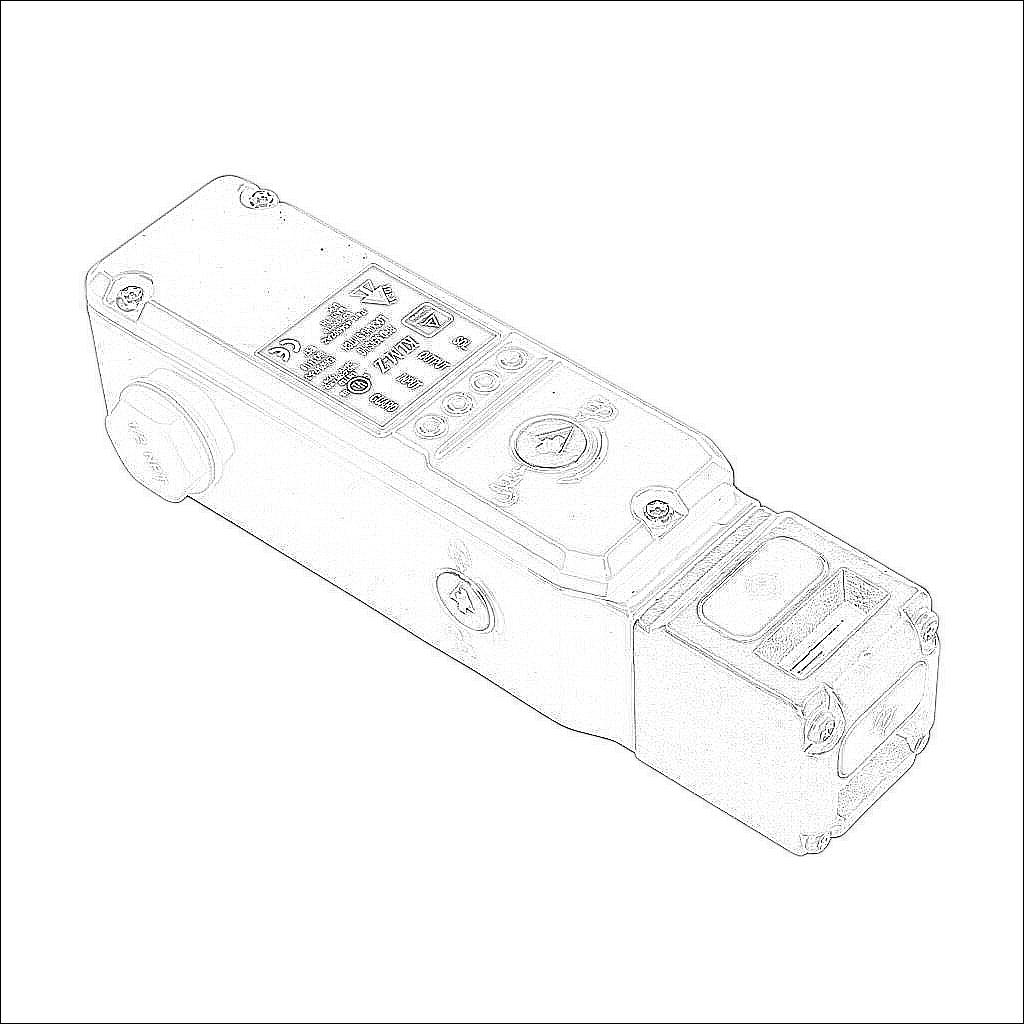

| Item | Safety switch | |
| Series | Z-Range | |
| Actuator Type | Tongue (key) interlock uniquely coded RFID | |
| Lock Type | Solenoid, 24 VDC to unlock | |
| Head Type | 90-degree adjustable | |
| Holding Force | 3000N | |
| Safety Output Type | (2) OSSD | |
| Monitoring Output Type | (2) status | |
| Indicating Type | (4) status LEDs | |
| Housing Size | 48 x 191 x 48mm | |
| Body Material | Die-cast aluminum | |
| Head Material | 316 stainless steel | |
| IP Rating | IP67 | |
| Connection | (2) 1/2in NPT cable entries | |
| Includes | (1) tamper-proof T20 Torx bit | |
